AX7DCF4-1200.0000C

Oscillators Overview

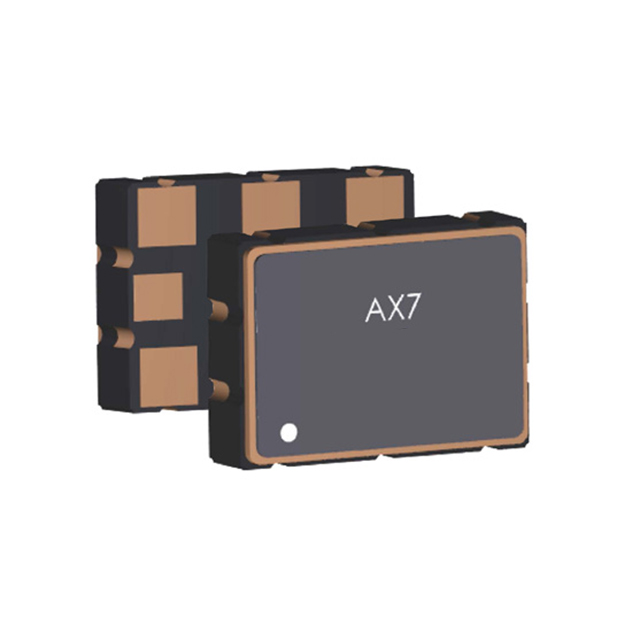

The Abracon AX7DCF4-1200.0000C is a standard clock oscillator operating at 1200 MHz with ±25 ppm frequency stability. It utilizes LVDS output format and requires a 1.8 V supply voltage (range 1.71 V to 1.89 V). The device features a 7 mm x 5 mm SMD package, operates within -40°C to +85°C, and draws a maximum current of 64 mA.

Oscillators Feature Summary

• Supports LVDS output format for high-speed signal integrity
• Operates on a 1.8 V power supply with low current consumption
• Provides ±25 ppm frequency stability across industrial temperature range

Oscillators Applications

• High-speed data communication systems
• Network synchronization equipment
• Industrial control systems requiring precise timing

Oscillators Procurement Notes

Verify the specific suffix 'C' against official documentation to confirm if it denotes a specific tape-and-reel packaging configuration or variant distinct from bulk packaging. Ensure the 1.8V supply requirement aligns with system design constraints before procurement.

Oscillators Selection Notes

Select this component when a 1200 MHz clock source with LVDS outputs is required. It is suitable for designs constrained by a 1.8V supply rail and needing compact 5x7mm footprints. Verify that the ±25 ppm stability meets the system's jitter and phase noise requirements.

Oscillators Part Context

This part belongs to the Abracon ClearClock AX7 series of standard oscillators. The series is characterized by low power consumption and support for multiple output types including LVPECL, HCSL, LVDS, and CML within industry-standard footprints.

Oscillators FAQ

What is the output format of the AX7DCF4-1200.0000C?

The output format is LVDS.

What is the operating voltage range?

The minimum voltage is 1.71 V and the maximum is 1.89 V.
