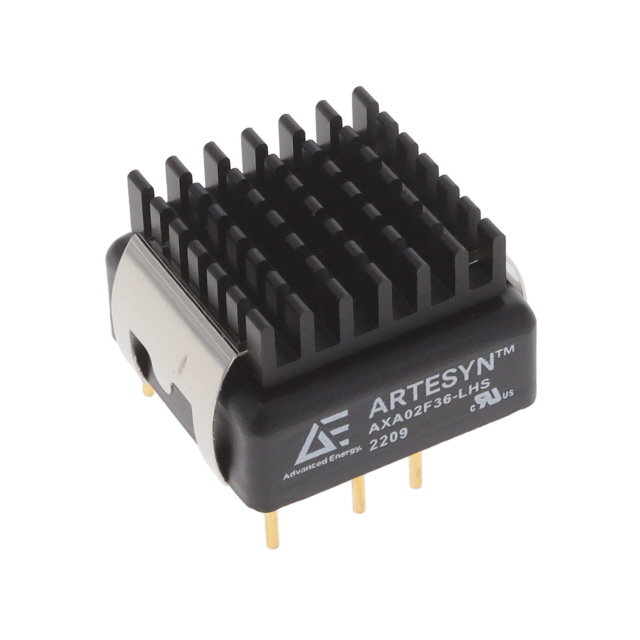

AXA02F36-LHS

AXA02F36-LHS is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is 10W, 18 - 75VIN, SINGLE, 3.3V@2.. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AXA02F36-LHS

• Description：10W, 18 - 75VIN, SINGLE, 3.3V@2.
• Series：AXA (10W)
• Mfr：ARTESYN / Advanced Energy
• Package：Box
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：75V
• Voltage - Output 1：3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2.2A
• Power (Watts)：7.26 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：Adjustable Output, Baseplate, Heat Sink, Remote On/Off
• Operating Temperature：-40°C ~ 80°C
• Efficiency：85%
• Mounting Type：Through Hole
• Package / Case：6-DIP Module
• Size / Dimension：1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, cUL, TUV, UL
• Standard Number：60950-1; 62368-1
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AXA02F36-LHS
