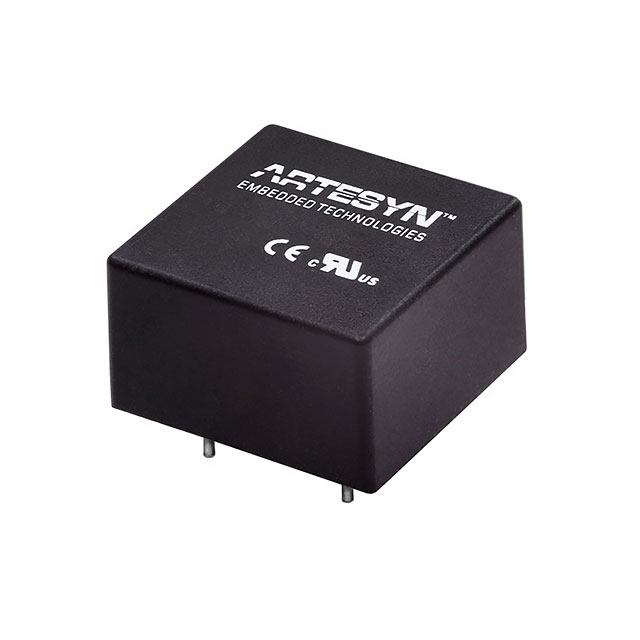

AYA01B24-L

AYA01B24-L is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 12V 3W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for AYA01B24-L

• Description：DC DC CONVERTER 12V 3W
• Series：AYA (3W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：18V
• Voltage - Input (Max)：36V
• Voltage - Output 1：12V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：250mA
• Power (Watts)：3 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：SCP
• Operating Temperature：-40°C ~ 85°C
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：7-DIP Module, 4 Leads
• Size / Dimension：0.55" L x 0.55" W x 0.31" H (14.0mm x 14.0mm x 8.0mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for AYA01B24-L
