AYPG1211F-TR

Overview

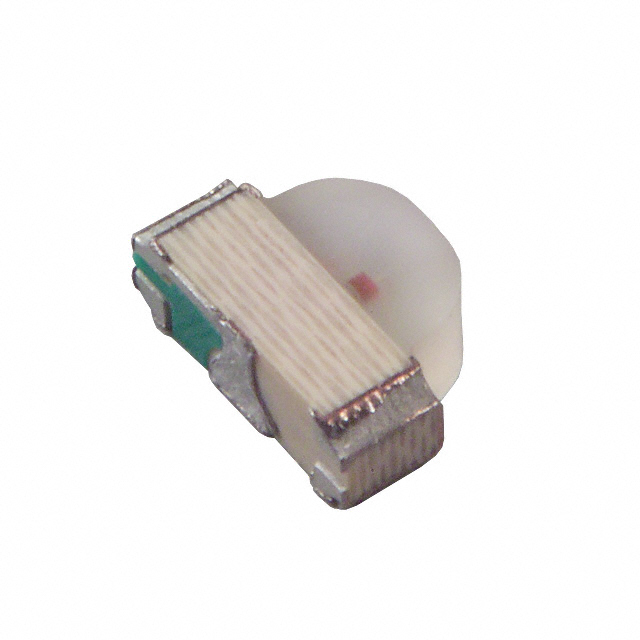

The AYPG1211F-TR is a dual-chip surface-mount LED manufactured by Stanley Electric Co. It integrates green and yellow emitters within a single 3020 (1208 metric) package, featuring three terminals for independent control. The device operates with a typical forward voltage of 2.8V for the green segment and emits at a primary wavelength of 567nm. The yellow segment operates at a typical forward voltage of 2.8V with a primary wavelength of 590nm. This component is designed for top-view installation and supports standard surface-mount reflow soldering processes.

Feature Summary

• Dual-color configuration combining green and yellow light sources in a compact footprint
• Three-terminal design enabling independent circuit control for each color channel
• Top-view lens geometry optimized for direct line-of-sight visibility

Applications

• Status indication on electronic control panels
• Multi-state signaling in consumer appliances
• Visual alerts in industrial instrumentation

Procurement Notes

Verify the specific suffix and packaging designation against the manufacturer's current datasheet to ensure compatibility with automated placement equipment. Confirm RoHS compliance status and moisture sensitivity level requirements prior to storage and handling. Cross-reference the terminal pinout diagram with the target PCB layout to prevent orientation errors during assembly.

Selection Notes

Select this component when space constraints require two distinct indicator colors within a single mounting location. The 3020 package size offers a balance between optical intensity and board real estate. Ensure the driving circuit can accommodate the separate anode or cathode connections required for the dual-chip architecture.

Part Context

This part belongs to Stanley Electric's portfolio of surface-mount optoelectronic devices. The 3020 form factor is widely utilized in modern electronics manufacturing for its compatibility with high-speed pick-and-place machinery. Dual-color LEDs in this series provide design flexibility for complex status reporting without increasing the component count on the printed circuit board.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify mechanical dimensions and spectral characteristics if considering alternative manufacturers.
