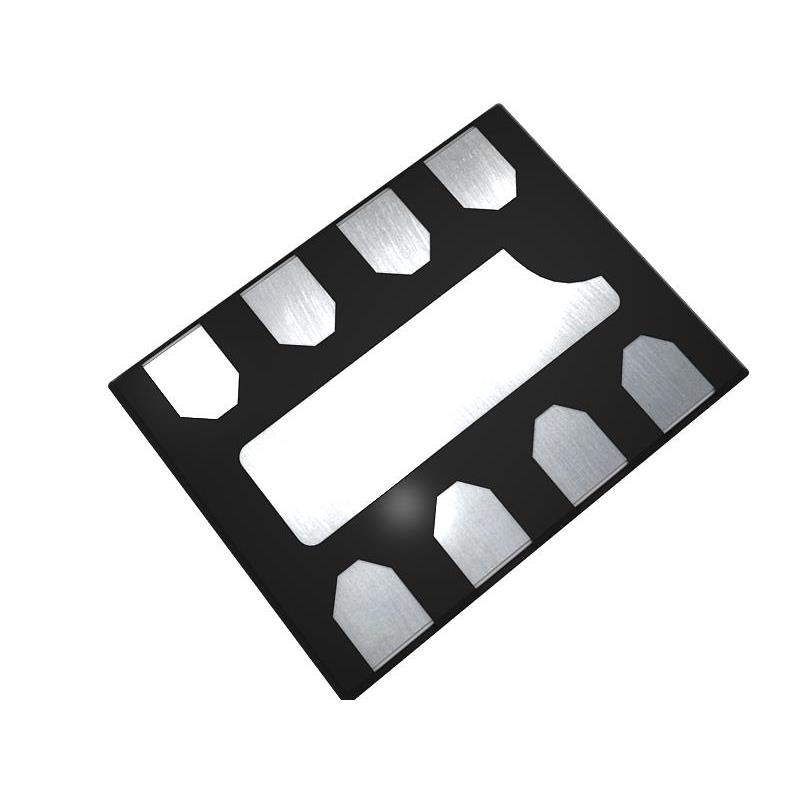

AZ2113-04F

AZ2113-04F is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Amazing. Its product description is TVS DIODE 3.3VWM 6VC DFN2116P8X. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for AZ2113-04F

• Description：TVS DIODE 3.3VWM 6VC DFN2116P8X
• Series：*
• Mfr：Amazing
• Package：Strip
• Type：-
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：3.3V (Max)
• Voltage - Breakdown (Min)：4.5V
• Voltage - Clamping (Max) @ Ipp：6V (Typ)
• Current - Peak Pulse (10/1000µs)：5A (8/20µs)
• Power - Peak Pulse：-
• Power Line Protection：-
• Applications：Data Line
• Capacitance @ Frequency：36pF @ 1MHz
• Operating Temperature：-55°C ~ 85°C (TC)
• Mounting Type：-
• Package / Case：DFN2116P8X
• Supplier Device Package：DFN2116P8X
• Unidirectional Channels：4
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for AZ2113-04F
