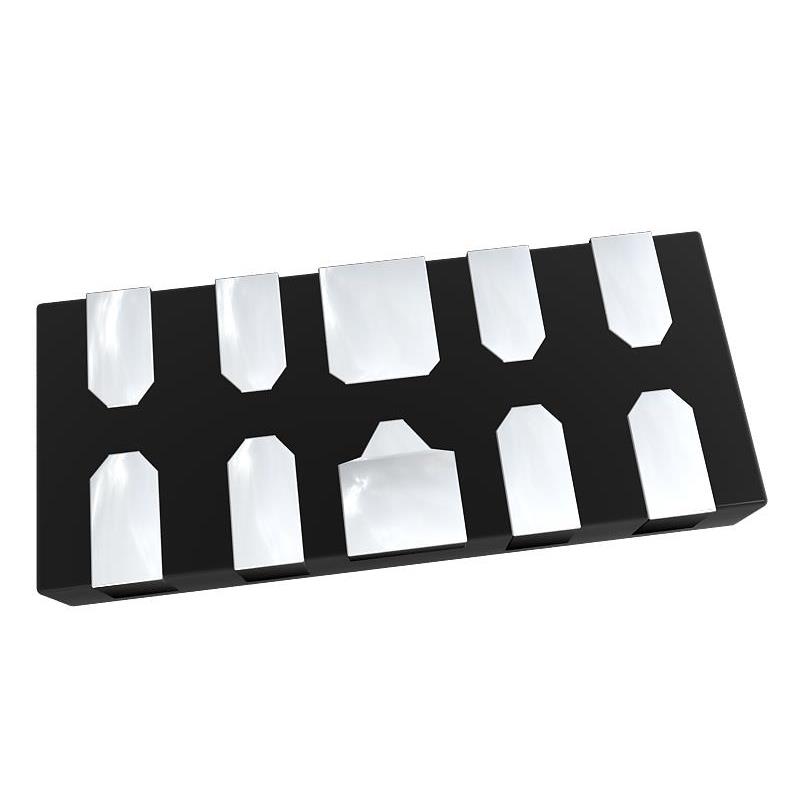

AZ2113-08F

AZ2113-08F is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Amazing. Its product description is TVS DEVICE LOW SPEED 8-CH 3.3V. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for AZ2113-08F

• Description：TVS DEVICE LOW SPEED 8-CH 3.3V
• Series：TVS/ESD/EOS
• Mfr：Amazing
• Package：Tape & Reel (TR)
• Type：-
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：3.3V (Max)
• Voltage - Breakdown (Min)：4.5V
• Voltage - Clamping (Max) @ Ipp：5V (Typ)
• Current - Peak Pulse (10/1000µs)：6A (8/20µs)
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：Data Line
• Capacitance @ Frequency：28pF @ 1MHz
• Operating Temperature：-55°C ~ 125°C
• Mounting Type：Surface Mount
• Package / Case：10-UFDFN
• Supplier Device Package：DFN2510P10E
• Unidirectional Channels：8
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for AZ2113-08F
