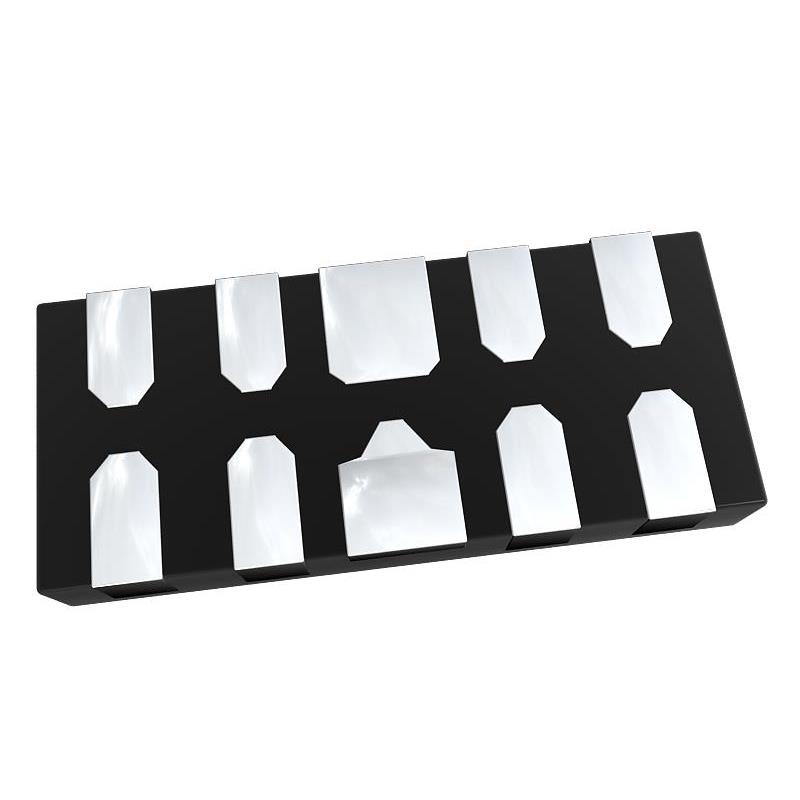

AZ4212-04F

AZ4212-04F is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Amazing. Its product description is TVS DEVICE LOW SPEED 4-CH 12V. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for AZ4212-04F

• Description：TVS DEVICE LOW SPEED 4-CH 12V
• Series：TVS/ESD/EOS
• Mfr：Amazing
• Package：Tape & Reel (TR)
• Type：-
• Bidirectional Channels：4
• Voltage - Reverse Standoff (Typ)：12V (Max)
• Voltage - Breakdown (Min)：13.7V
• Voltage - Clamping (Max) @ Ipp：15.5V (Typ)
• Current - Peak Pulse (10/1000µs)：6A (8/20µs)
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：Data Line
• Capacitance @ Frequency：6pF @ 1MHz
• Operating Temperature：-55°C ~ 125°C
• Mounting Type：Surface Mount
• Package / Case：10-UFDFN
• Supplier Device Package：DFN2510P10E
• Unidirectional Channels：-
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for AZ4212-04F
