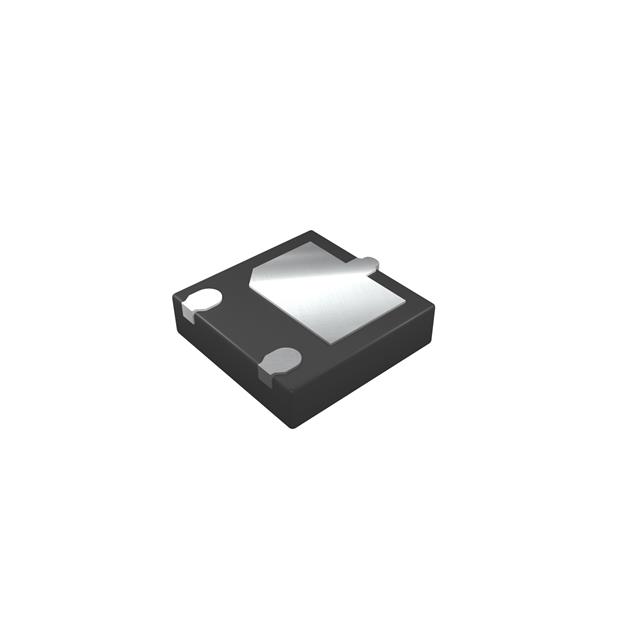

AZ4736-01F

AZ4736-01F is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Amazing. Its product description is TVS DEVICE LOW SPEED 1-CH 36V. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for AZ4736-01F

• Description：TVS DEVICE LOW SPEED 1-CH 36V
• Series：TVS/ESD/EOS
• Mfr：Amazing
• Package：Tape & Reel (TR)
• Type：-
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：36V (Max)
• Voltage - Breakdown (Min)：40V
• Voltage - Clamping (Max) @ Ipp：44V (Typ)
• Current - Peak Pulse (10/1000µs)：75A (8/20µs)
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：Power Line
• Capacitance @ Frequency：380pF @ 1MHz
• Operating Temperature：-55°C ~ 125°C
• Mounting Type：Surface Mount
• Package / Case：3-UDFN Exposed Pad
• Supplier Device Package：DFN2020P3E
• Unidirectional Channels：1
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for AZ4736-01F
