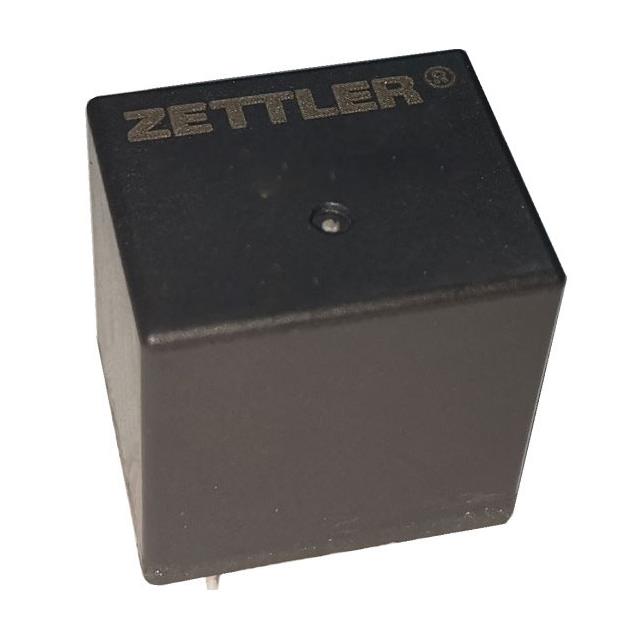

Power Relays, Over 2 Amps AZ9322-1AH-24D product image

AZ9322-1AH-24D

$0.91

Description：RELAY GEN PURPOSE SPST 15A 24V
Series：AZ9322
Mfr：American Zettler
Package：Tube

SKU:7229d11d9ca5 Category: Power Relays, Over 2 Amps Brand: American Zettler

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AZ9322-1AH-24D is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists American Zettler. Its product description is RELAY GEN PURPOSE SPST 15A 24V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for AZ9322-1AH-24D

Description：RELAY GEN PURPOSE SPST 15A 24V
Series：AZ9322
Mfr：American Zettler
Package：Tube
Mounting Type：Through Hole
Coil Voltage：24VDC
Contact Form：SPST-NO (1 Form A)
Contact Rating (Current)：15 A
Switching Voltage：277VAC - Max
Load - Max Switching：1800VA
Coil Current：15 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin
Seal Rating：-
Coil Insulation：Class B
Must Operate Voltage：18 VDC
Must Release Voltage：-
Operating Temperature：-
Contact Material：Silver Tin Oxide (AgSnO)
Approval Agency：-
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：10 ms
Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for AZ9322-1AH-24D

AZ9322-1AH-24D
