AZ9427-02S

AZ9427-02S is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Amazing. Its product description is TVS DEVICE LOW SPEED 2-CH 27V. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for AZ9427-02S

• Description：TVS DEVICE LOW SPEED 2-CH 27V
• Series：TVS/ESD/EOS
• Mfr：Amazing
• Package：Tape & Reel (TR)
• Type：-
• Bidirectional Channels：2
• Voltage - Reverse Standoff (Typ)：27V (Max)
• Voltage - Breakdown (Min)：28.5V
• Voltage - Clamping (Max) @ Ipp：37V (Typ)
• Current - Peak Pulse (10/1000µs)：2A (8/20µs)
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：Data Line
• Capacitance @ Frequency：5pF @ 1MHz
• Operating Temperature：-55°C ~ 125°C
• Mounting Type：Surface Mount

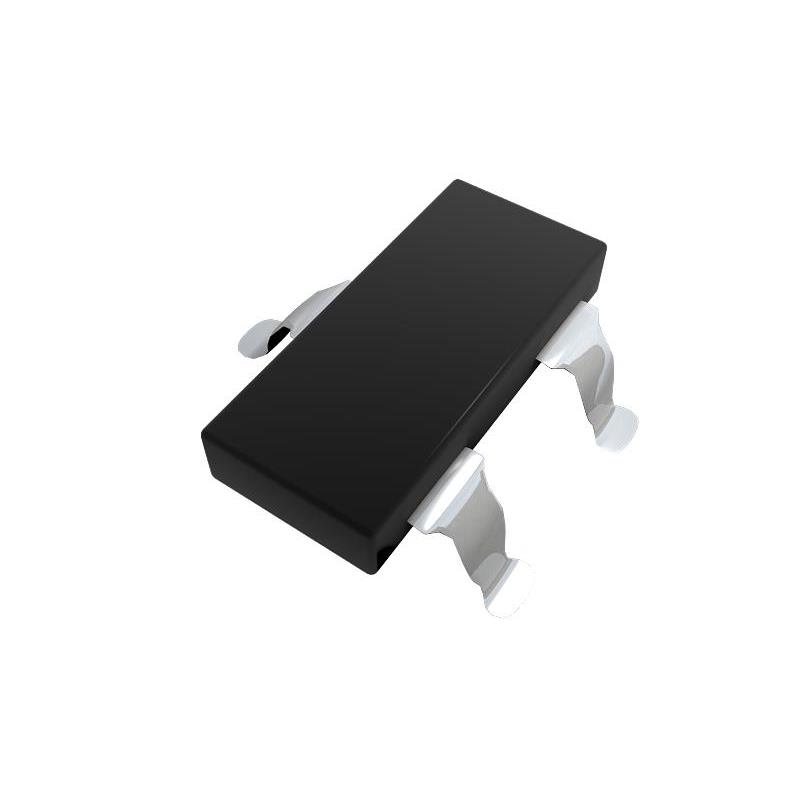

• Package / Case：TO-236-3, SC-59, SOT-23-3
• Supplier Device Package：SOT23-3L
• Unidirectional Channels：-
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for AZ9427-02S
