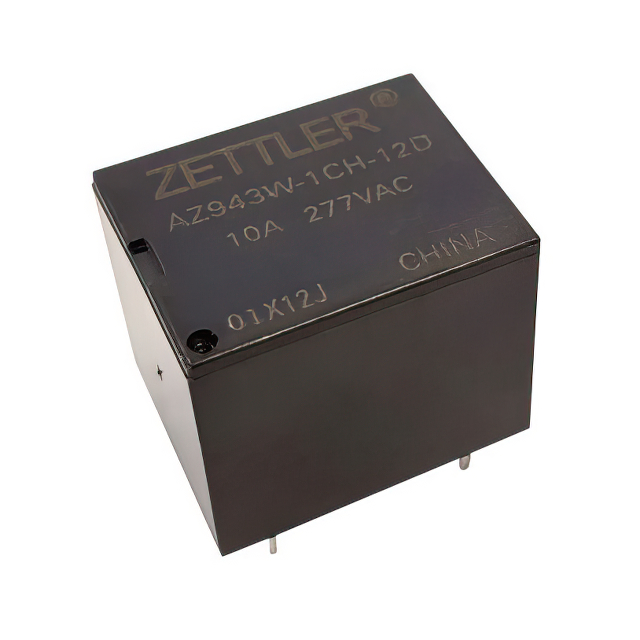

Power Relays, Over 2 Amps AZ943W-1AH-12DF product image

AZ943W-1AH-12DF

$0.59

Description：RELAY GEN PURPOSE SPST 10A 12V
Series：AZ943W
Mfr：American Zettler
Package：Tube

SKU:c27d6475803c Category: Power Relays, Over 2 Amps Brand: American Zettler

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AZ943W-1AH-12DF is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists American Zettler. Its product description is RELAY GEN PURPOSE SPST 10A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for AZ943W-1AH-12DF

Description：RELAY GEN PURPOSE SPST 10A 12V
Series：AZ943W
Mfr：American Zettler
Package：Tube
Mounting Type：Through Hole
Coil Voltage：12VDC
Contact Form：SPST-NO (1 Form A)
Contact Rating (Current)：10:00 AM
Switching Voltage：277VAC, 30VDC - Max
Load - Max Switching：2770VA, 300W
Coil Current：44.4 mA
Coil Type：Non Latching
Features：-
Termination Style：PC Pin
Seal Rating：Sealed - Flux Protection
Coil Insulation：Class F
Must Operate Voltage：9 VDC
Must Release Voltage：1.2 VDC
Operating Temperature：-40°C ~ 70°C
Contact Material：Silver Tin Oxide (AgSnO)
Approval Agency：CUR, TUV, UL, VDE
Relay Type：General Purpose
Grade：-
Qualification：-
Operate Time：10 ms
Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for AZ943W-1AH-12DF

AZ943W-1AH-12DF
