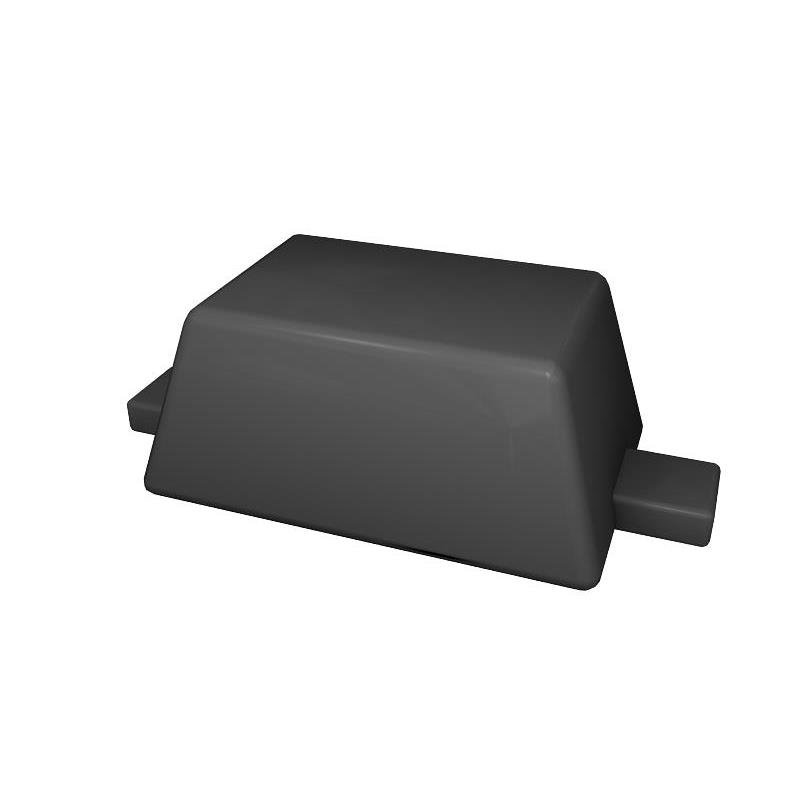

Tvs Diodes AZ9523-01H product image

AZ9523-01H

$0.26
  • Description：TVS DIODE 3.3VWM 8VC SOD523
  • Series：*
  • Mfr：Amazing
  • Package：Strip

SKU:c32cf5284ae6 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

AZ9523-01H is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Amazing. Its product description is TVS DIODE 3.3VWM 8VC SOD523. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for AZ9523-01H

  • Description：TVS DIODE 3.3VWM 8VC SOD523
  • Series：*
  • Mfr：Amazing
  • Package：Strip
  • Type：Zener
  • Bidirectional Channels：1
  • Voltage - Reverse Standoff (Typ)：3.3V (Max)
  • Voltage - Breakdown (Min)：4V
  • Voltage - Clamping (Max) @ Ipp：8V
  • Current - Peak Pulse (10/1000µs)：4A
  • Power - Peak Pulse：-
  • Power Line Protection：No
  • Applications：Power Line
  • Capacitance @ Frequency：15pF @ 1MHz
  • Operating Temperature：-55°C ~ 125°C (TC)
  • Mounting Type：Surface Mount
  • Package / Case：SOD-523
  • Supplier Device Package：SOD-523
  • Unidirectional Channels：-
  • Grade：-
  • Qualification：-

Tvs Diodes datasheet and documents for AZ9523-01H

AZ9523-01H

Explore related parts through Transient Voltage Suppressors (TVS), Circuit Protection, all product categories, ChipApex homepage.
