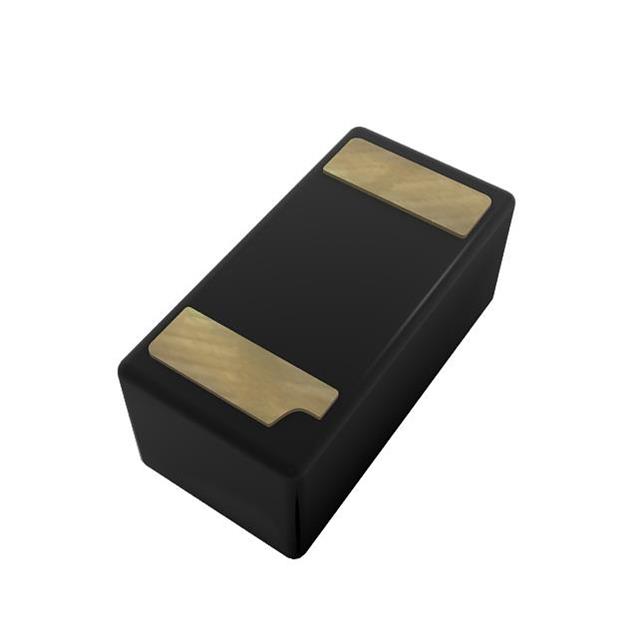

AZ9924-01F

AZ9924-01F is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Amazing. Its product description is TVS DEVICE HIGH SPEED 1-CH 24V. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for AZ9924-01F

• Description：TVS DEVICE HIGH SPEED 1-CH 24V
• Series：TVS/ESD/EOS
• Mfr：Amazing
• Package：Tape & Reel (TR)
• Type：-
• Bidirectional Channels：-
• Voltage - Reverse Standoff (Typ)：24V (Max)
• Voltage - Breakdown (Min)：26.2V
• Voltage - Clamping (Max) @ Ipp：53V (Typ)
• Current - Peak Pulse (10/1000µs)：1A (8/20µs)
• Power - Peak Pulse：-
• Power Line Protection：No
• Applications：Data Line
• Capacitance @ Frequency：0.3pF @ 1MHz
• Operating Temperature：-55°C ~ 125°C
• Mounting Type：Surface Mount
• Package / Case：DFN1006P2E
• Supplier Device Package：DFN1006P2E
• Unidirectional Channels：1
• Grade：-
• Qualification：-

Tvs Diodes datasheet and documents for AZ9924-01F
