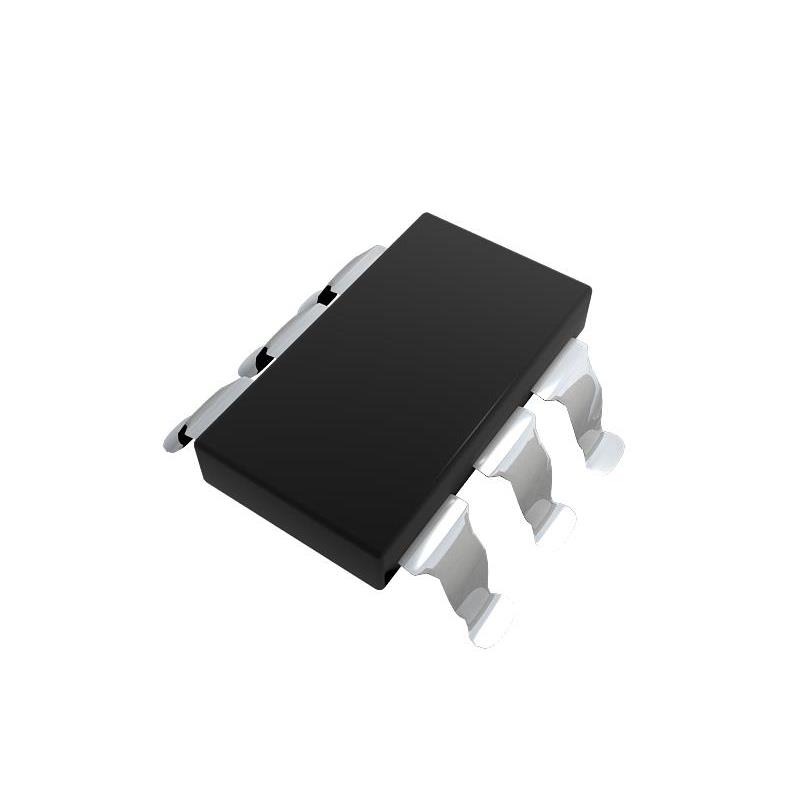

Tvs Diodes AZC099-04S product image

AZC099-04S

$0.17
  • Description：TVS DIODE 5VWM 9VC SOT236L
  • Series：*
  • Mfr：Amazing
  • Package：Strip

SKU:41b9eaddeea5 Category: Brand:

　　
  • Quantity
    • -
    • +
    • 　　　
ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.


Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Submitting!
Submission successful!
Submission failed!
Email error!
Phone number error!

AZC099-04S is listed in the Tvs Diodes range at ChipApex. The manufacturer field lists Amazing. Its product description is TVS DIODE 5VWM 9VC SOT236L. Review the specifications below when checking this part for your BOM.

Tvs Diodes specifications for AZC099-04S

  • Description：TVS DIODE 5VWM 9VC SOT236L
  • Series：*
  • Mfr：Amazing
  • Package：Strip
  • Type：Zener
  • Bidirectional Channels：-
  • Voltage - Reverse Standoff (Typ)：5V (Max)
  • Voltage - Breakdown (Min)：6.2V
  • Voltage - Clamping (Max) @ Ipp：9V (Typ)
  • Current - Peak Pulse (10/1000µs)：5.5A
  • Power - Peak Pulse：-
  • Power Line Protection：No
  • Applications：Data Line
  • Capacitance @ Frequency：1pF @ 1MHz
  • Operating Temperature：-55°C ~ 85°C (TC)
  • Mounting Type：Surface Mount
  • Package / Case：SOT23-6L
  • Supplier Device Package：SOT23-6L
  • Unidirectional Channels：1
  • Grade：-
  • Qualification：-

Tvs Diodes datasheet and documents for AZC099-04S

AZC099-04S
