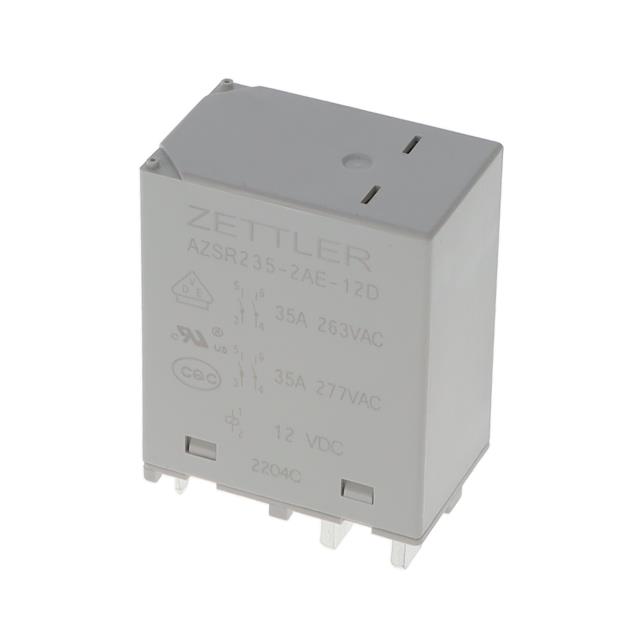

AZSR235-2AE-12D

AZSR235-2AE-12D is listed in the Power Relays, Over 2 Amps range at ChipApex. The manufacturer field lists American Zettler. Its product description is RELAY EV CHG SOLAR DPST 35A 12V. Review the specifications below when checking this part for your BOM.

Power Relays, Over 2 Amps specifications for AZSR235-2AE-12D

• Description：RELAY EV CHG SOLAR DPST 35A 12V
• Series：AZSR235
• Mfr：American Zettler
• Package：Box
• Mounting Type：Through Hole
• Coil Voltage：12VDC
• Contact Form：DPST-NO (2 Form A)
• Contact Rating (Current)：35 A
• Switching Voltage：440VAC, 150VDC - Max
• Load - Max Switching：9695VA, 1050W
• Coil Current：40 mA
• Coil Type：Non Latching
• Features：-
• Termination Style：PC Pin
• Seal Rating：-
• Coil Insulation：Class F
• Must Operate Voltage：9 VDC
• Must Release Voltage：0.6 VDC
• Operating Temperature：-40°C ~ 85°C
• Contact Material：Silver Tin Oxide (AgSnO)
• Approval Agency：UL, VDE
• Relay Type：EV Charging, Solar
• Grade：-
• Qualification：-
• Operate Time：40 ms
• Release Time：5 ms

Power Relays, Over 2 Amps datasheet and documents for AZSR235-2AE-12D
