B-01-RT

Overview

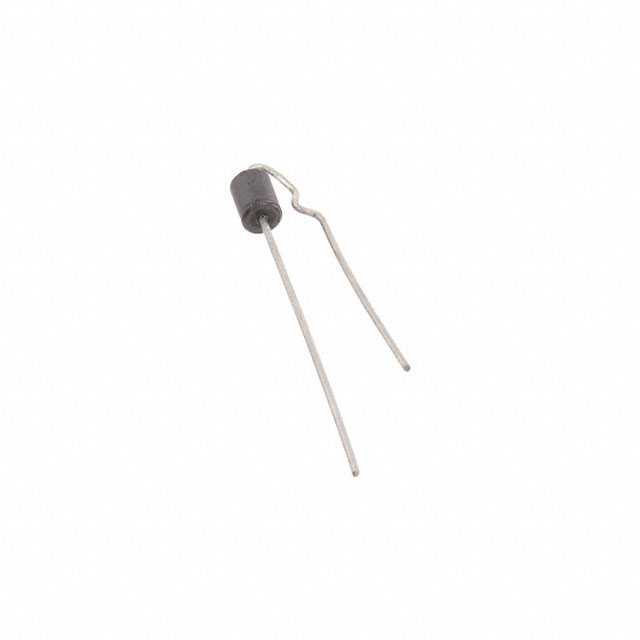

The KEMET B-01-RT is a ferrite bead component belonging to the Bead L series. It features an axial termination style with bead lead construction. The device has a direct current resistance (DCR) of 2 ohms and supports a maximum DC current of 5 amperes. It operates within a temperature range from -20°C to +70°C. The physical dimensions are 67 mm in length and 3.4 mm in diameter. The product is shielded and complies with RoHS standards.

Feature Summary

• Axial bead lead termination for through-hole mounting
• Shielded design for electromagnetic interference suppression
• High current handling capability up to 5A

Applications

• Electromagnetic interference filtering in power lines
• Signal integrity protection in electronic circuits
• Common mode noise suppression applications

Procurement Notes

Verify the specific suffix RT against official KEMET documentation to confirm reel packaging specifications. Ensure the axial bead lead form factor matches the target PCB layout requirements. Confirm RoHS compliance status for the specific manufacturing batch prior to integration into regulated assemblies.

Selection Notes

Select this component when axial mounting is required for high-current ferrite bead applications. The 2-ohm DCR and 5A rating define the thermal and impedance characteristics. Verify that the operating temperature range of -20°C to +70°C meets the environmental conditions of the intended application site.

Part Context

This part is manufactured by KEMET, a global provider of passive electronic components. The B-01-RT belongs to the Bead L series of ferrite beads. These components are designed for noise suppression in electronic circuits. The axial package distinguishes it from surface mount alternatives.

FAQ

What is the maximum DC current rating for the B-01-RT?

The maximum DC current rating is 5 amperes.

Does the B-01-RT feature shielding?

Yes, the component is specified as shielded.
