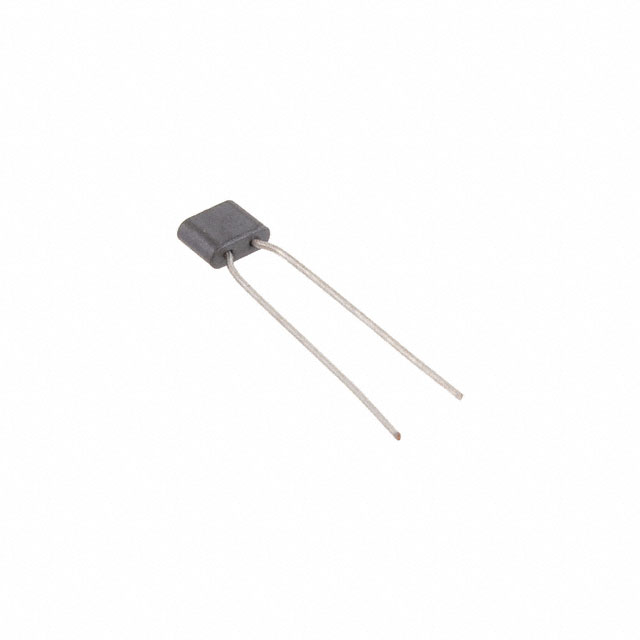

B-06-RTF-50

$0.40

Description：FERRITE BEAD 40 OHM RADIAL 1LN
Series：BEAD L
Mfr：KEMET
Package：Tape & Reel (TR)

SKU:afc5c553c6f8 Category: Ferrite Beads and Chips Brand: KEMET

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FERRITE BEAD 40 OHM RADIAL 1LN
Series：BEAD L
Mfr：KEMET
Package：Tape & Reel (TR)
Filter Type：Signal Line
Number of Lines：1
Impedance @ Frequency：40 Ohms @ 10 MHz
Current Rating (Max)：5A
DC Resistance (DCR) (Max)：-
Ratings：-
Operating Temperature：-20°C ~ 70°C
Package / Case：Radial
Mounting Type：Through Hole
Height (Max)：0.394" (10.00mm)
Size / Dimension：0.236" L x 0.276" W (6.00mm x 7.00mm)
Features：-

Download product information

B-06-RTF-50

Overview

The KEMET B-06-RTF-50 is a shielded ferrite bead designed for DC line filtering applications. It features a radial through-hole mounting configuration with flexible lead wires. The component has an impedance of 40 Ohms at 100 MHz and supports a maximum DC current of 5 A. It operates within a temperature range of -20°C to +70°C. Physical dimensions include a height of 6 mm, width of 2.5 mm, and length of 7 mm.

Feature Summary

Shielded construction minimizes electromagnetic interference
Flexible soft leads facilitate easy circuit board installation
Radial through-hole design for secure mechanical attachment

Applications

DC line filtering
Electromagnetic interference suppression
Power supply noise reduction

Procurement Notes

Verify the specific impedance value and current rating against the official datasheet before integration. Confirm that the operating temperature range meets the environmental requirements of the target application. Ensure the physical footprint aligns with the printed circuit board layout constraints.

Selection Notes

Select this component when shielding is required to prevent magnetic field radiation from affecting nearby circuits. The flexible leads are suitable for manual assembly or automated processes requiring strain relief. Consider the 5 A current capacity to ensure adequate headroom for the specific power rail being filtered.

Part Context

This part belongs to the KEMET Bead L series of ferrite beads. These components are engineered for general-purpose noise suppression in electronic circuits. The series offers various impedance values and current ratings to suit different filtering needs across consumer and industrial electronics.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify compatibility with alternative ferrite beads by matching impedance, current rating, and physical dimensions.
