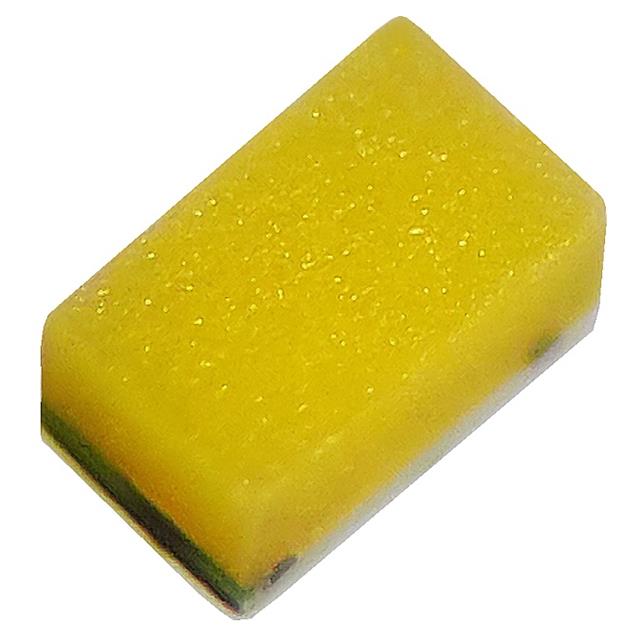

B0211TX--02P000214U1930

$0.12

Description：LED WHITE 2SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1bac3e798ec3 Category: LED Indication - Discrete Brand: Harvatek Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED WHITE 2SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White
Configuration：-
Lens Color：Yellow
Lens Transparency：-
Millicandela Rating：55mcd
Lens Style：Rectangle with Flat Top
Lens Size：0.65mm x 0.38mm
Voltage - Forward (Vf) (Typ)：2.6V
Current - Test：2mA
Viewing Angle：110°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：2-SMD, No Lead
Supplier Device Package：2-SMD
Size / Dimension：0.65mm L x 0.38mm W
Height (Max)：0.41mm
Grade：-
Qualification：-

Download product information

B0211TX--02P000214U1930

Overview

The B0211TX--02P000214U1930 is a white surface-mount LED from Harvatek Corporation, designed for discrete indication applications. It features a compact 2-SMD no-lead package with dimensions of 0.65mm length, 0.38mm width, and a maximum height of 0.36mm. The component operates with a typical forward voltage of 2.6V at a test current of 2mA. It provides a viewing angle of 110 degrees and utilizes a rectangular lens with a flat top design.

Feature Summary

Ultra-compact 2-SMD no-lead surface-mount package suitable for tight PCB layouts
Wide 110-degree viewing angle for effective visibility
Rectangular lens with flat top design for directional light emission

Applications

Status indicators on electronic devices
Backlighting for small interfaces
Miniature consumer electronics

Procurement Notes

Verify the exact part number including suffixes against the manufacturer's official documentation to ensure correct specifications. Confirm RoHS compliance status and moisture sensitivity level (MSL) requirements prior to assembly. Check for any specific handling instructions related to the surface-mount package type during reflow soldering processes.

Selection Notes

Select this component when space constraints require a minimal footprint SMD LED. Ensure the driving circuit can accommodate the 2.6V forward voltage drop. Consider the 110-degree viewing angle for optical placement relative to the user or sensor. Verify thermal management capabilities if operating near maximum ratings.

Part Context

This part belongs to Harvatek Corporation's line of discrete surface-mount LEDs. It is part of a series offering various colors and package sizes for indicator applications. The company specializes in optoelectronics components for compact electronic designs.

Replacement Considerations

Consult official cross-reference lists for verified substitutes. Generic replacements may differ in luminous intensity, viewing angle, or forward voltage characteristics. Ensure any substitute matches the 2-SMD no-lead package dimensions and electrical parameters.
