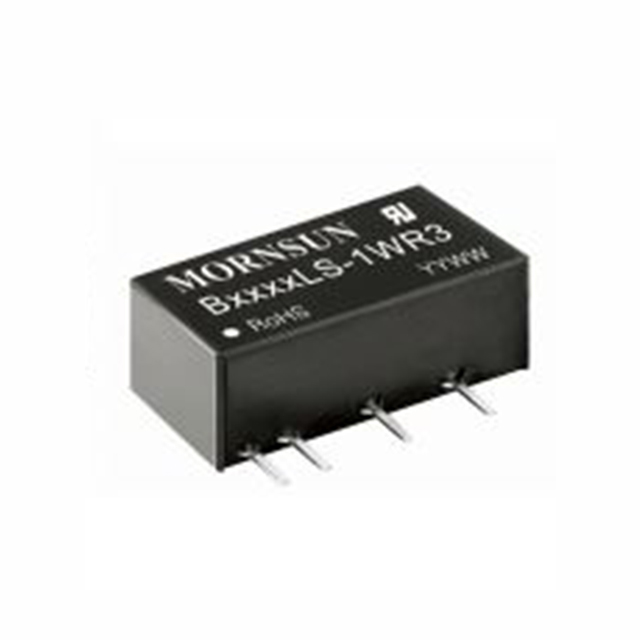

B0515LS-1WR3

B0515LS-1WR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER 15V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for B0515LS-1WR3

• Description：DC DC CONVERTER 15V 1W
• Series：B_LS-1WR3 (1W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：67mA
• Power (Watts)：1 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：83%
• Mounting Type：Through Hole
• Package / Case：7-SIP Module, 4 Leads
• Size / Dimension：0.77" L x 0.24" W x 0.40" H (19.7mm x 6.0mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, CE, cURus
• Standard Number：-

DC DC Converters datasheet and documents for B0515LS-1WR3
