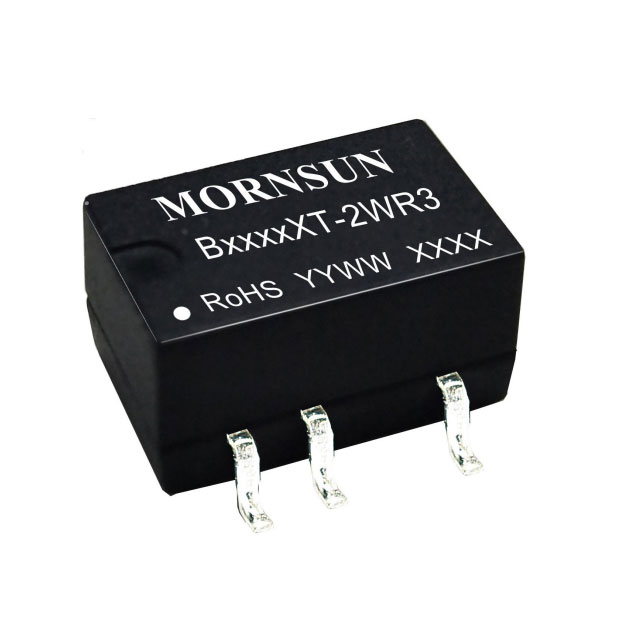

B0515XT-2WR3

B0515XT-2WR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER 15V 2W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for B0515XT-2WR3

• Description：DC DC CONVERTER 15V 2W
• Series：B0515XT-2WR3 (2W)
• Mfr：Mornsun America, LLC
• Package：Tray
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：15V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：133mA
• Power (Watts)：1.9 W
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：86%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module, 5 Leads
• Size / Dimension：0.52" L x 0.33" W x 0.29" H (13.2mm x 8.5mm x 7.3mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CE, UKCA
• Standard Number：62368-1

DC DC Converters datasheet and documents for B0515XT-2WR3
