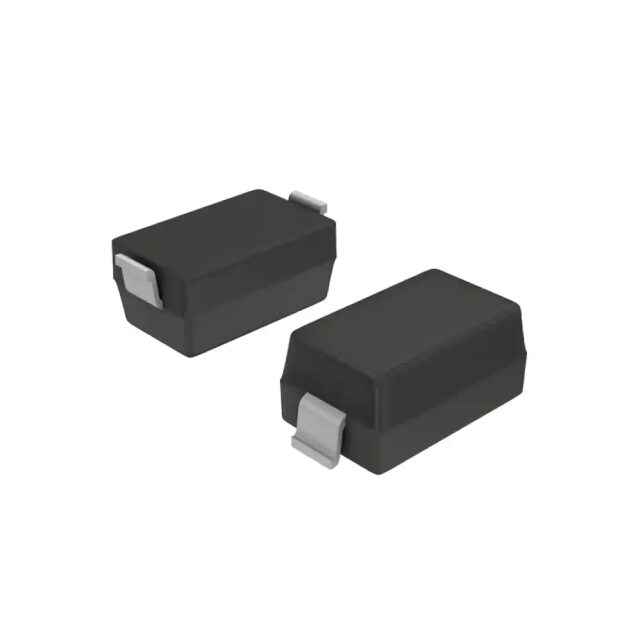

B0530WS

$0.09

Description：30V INDEPENDENT TYPE 450MV@500MA
Series：-
Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:d10034ea387e Category: Single Diodes Brand: Shenzhen Slkormicro Semicon Co., Ltd.

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：30V INDEPENDENT TYPE 450MV@500MA
Series：-
Mfr：Shenzhen Slkormicro Semicon Co., Ltd.
Package：Tape & Reel (TR),Cut Tape (CT)
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：30 V
Current - Average Rectified (Io)：500mA
Voltage - Forward (Vf) (Max) @ If：450 mV @ 500 mA
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：500 µA @ 30 V
Capacitance @ Vr, F：-
Mounting Type：Surface Mount
Package / Case：SC-76, SOD-323
Supplier Device Package：SOD-323
Operating Temperature - Junction：-55°C ~ 125°C
Grade：-
Qualification：-

Download product information

B0530WS

Overview

The B0530WS is a Schottky diode manufactured by Shenzhen Slkormicro Semicon Co., Ltd. It features a 30V reverse voltage rating and a 0.5A average forward current capability. The device utilizes silicon technology and is housed in an SOD-323F-2 surface-mount package. It supports a maximum surge forward current of 2.0 Amps (IFSM). The component is designed for surface mount installation and falls under the category of Schottky Diodes & Rectifiers.

Feature Summary

Utilizes Schottky barrier technology for low forward voltage drop characteristics
Designed for high-speed switching applications due to fast recovery time
Constructed with silicon material for reliable semiconductor performance

Applications

General purpose rectification in electronic circuits
Power supply input protection stages
Freewheeling diodes in inductive load switching

Procurement Notes

Verify the manufacturer designation carefully, as the provided data indicates Shenzhen Slkormicro Semicon Co., Ltd. as the source, while other records list Taiwan Semiconductor. Confirm the specific datasheet version and RoHS compliance status directly with the supplier before integration. Ensure the SOD-323F-2 footprint matches the design layout requirements precisely.

Selection Notes

Select this component when a compact surface-mount Schottky diode is required for low-voltage, low-current applications. The SOD-323F-2 package offers space efficiency compared to larger through-hole alternatives. Consider the 30V rating and 0.5A continuous current limits to ensure adequate headroom for the specific circuit operating conditions and thermal environment.

Part Context

This component belongs to the discrete diode category, specifically within the Schottky rectifier sub-family. It serves as a fundamental passive semiconductor element used for converting alternating current to direct current or protecting circuits from reverse polarity. The SOD-323F-2 packaging standardizes its placement on printed circuit boards for automated assembly processes.
