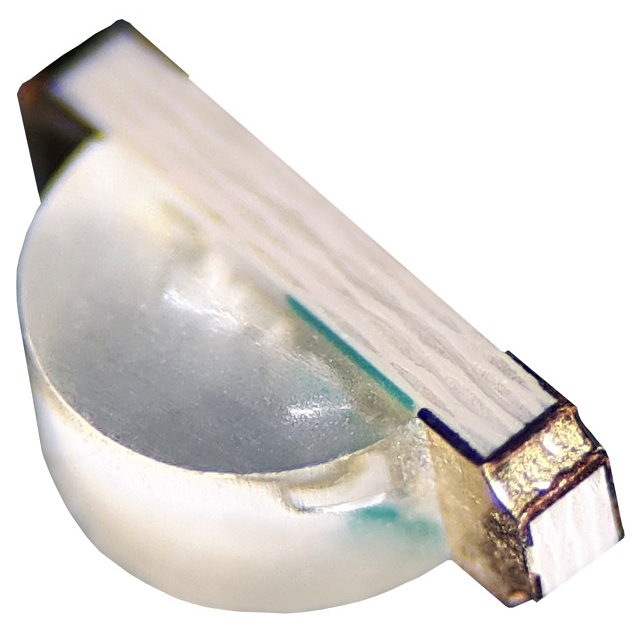

B1101TW--20P000433U1930

$0.10

Description：LED WHITE SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:f781fa40d273 Category: LED Indication - Discrete Brand: Harvatek Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED WHITE SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White
Configuration：-
Lens Color：-
Lens Transparency：-
Millicandela Rating：-
Lens Style：Rectangle with Irregular Top
Lens Size：-
Voltage - Forward (Vf) (Typ)：-
Current - Test：-
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：-
Supplier Device Package：-
Size / Dimension：3.20mm L x 1.50mm W
Height (Max)：1.00mm
Grade：-
Qualification：-

Download product information

B1101TW--20P000433U1930

Overview

The B1101TW--20P000433U1930 is a surface-mount LED from the Harvatek B1101 Series. It utilizes a compact 3.20×1.50×1.00 mm package design suitable for tight PCB layouts. The component is engineered for indicator and backlighting applications, offering high brightness in a small form factor.

Feature Summary

Compact SMD package dimensions of 3.20x1.50x1.00 mm
Optimized for tight PCB layouts
High brightness output

Applications

Status indicators
Backlighting
Tight PCB layout designs

Procurement Notes

Verify the specific suffix codes against official Harvatek documentation to confirm exact color binning and forward voltage characteristics. Ensure compatibility with standard reflow soldering profiles for SMD components. Cross-reference the full part number to distinguish between different optical intensity grades within the B1101 series.

Selection Notes

Select this component when space constraints require a 3.20x1.50 mm footprint. Consider the B1101 series for general-purpose lighting needs where high brightness is required in a minimal volume. Evaluate thermal management requirements based on the specific current drive conditions defined in the datasheet.

Part Context

This model belongs to the B1101 Series of SMD LEDs manufactured by Harvatek Corporation. The series provides top-view options in various colors including white, red, blue, green, and yellow. It serves as a foundational component for modern electronic devices requiring efficient, low-profile illumination sources.

Replacement Considerations

Consult official Harvatek substitution guides for verified equivalents. Generic replacements may differ in luminous intensity or viewing angle specifications.
