B1211NB--20C001634U1930

Overview

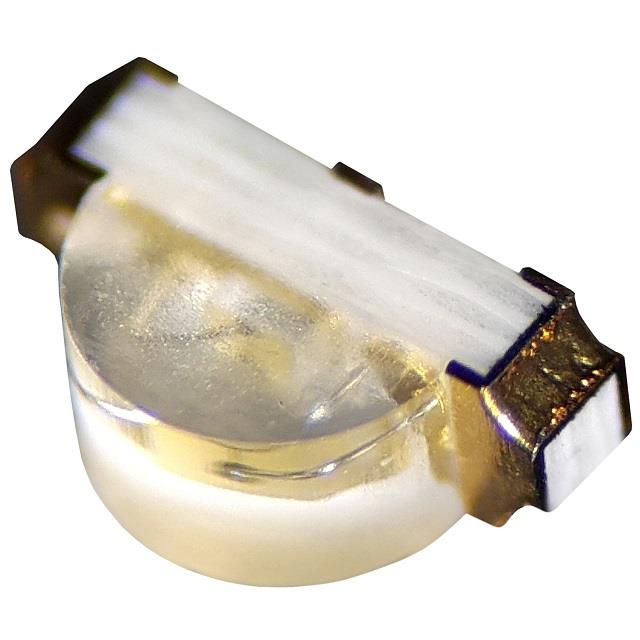

The B1211NB--20C001634U1930 is a discrete LED indicator manufactured by Harvatek Corporation. It features a side-view package with dimensions of 1.6 mm length, 0.6 mm width, and 1.0 mm height. The component utilizes an optimized rear pad layout to prevent tombstoning during reflow soldering processes. It is designed for surface-mount installation and is available in multiple vibrant color options.

Feature Summary

• Side-view package design with optimized rear pad layout to prevent tombstoning during reflow
• Available in multiple vibrant colors for status indication applications

Applications

• Status indicators
• Direct-view panels
• Backlighting

Procurement Notes

Verify the specific color variant required for your application, as the base series offers multiple options. Confirm that the standard eight-week lead time aligns with your production schedule. Ensure compatibility with surface-mount assembly processes given the side-view package geometry. Check RoHS compliance status if environmental regulations apply to your manufacturing site.

Selection Notes

Select this component when space constraints require a compact 1.6x0.6mm footprint but visibility demands a side-view orientation. The optimized rear pad design makes it suitable for high-reliability SMT lines where tombstoning risks must be minimized. Consider the available color range to match aesthetic or functional signaling requirements.

Part Context

This part belongs to the B1211 Series from Harvatek Corporation, which specializes in SMD LEDs with optimized thermal and mechanical layouts. The series focuses on preventing assembly defects like tombstoning through specific pad engineering. It complements other series like the top-view B1501 and ultra-compact B1811 models within the manufacturer's portfolio.

Replacement Considerations

Public confirmed substitute part numbers are not available.
