ChipApex | Global Electronic Components Supplier
B1501NB--20D003013U1930
Search Product
Search Post
— IC芯片 | 连接器 | 传感器 | 被动器件 —
Consult the customer manager about the wholesale price.
consultation hotline：86-132-6715-2157
email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.
Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.
Product Detailed Parameters
- Description：3.2(L) X 1.6(W) X 1.1(H)MM
- Series：HT-150
- Mfr：Harvatek Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Blue
- Configuration：Independent
- Lens Color：Colorless
- Lens Transparency：Diffused
- Millicandela Rating：70mcd
- Lens Style：Rectangle with Flat Top
- Lens Size：2.00mm x 1.60mm
- Voltage - Forward (Vf) (Typ)：3.3V
- Current - Test：20mA
- Viewing Angle：-
- Mounting Type：Surface Mount
- Wavelength - Dominant：470nm
- Wavelength - Peak：468nm
- Features：-
- Package / Case：1206 (3216 Metric)
- Supplier Device Package：1206
- Size / Dimension：3.20mm L x 1.60mm W
- Height (Max)：1.20mm
- Grade：-
- Qualification：-
Download product information
Overview

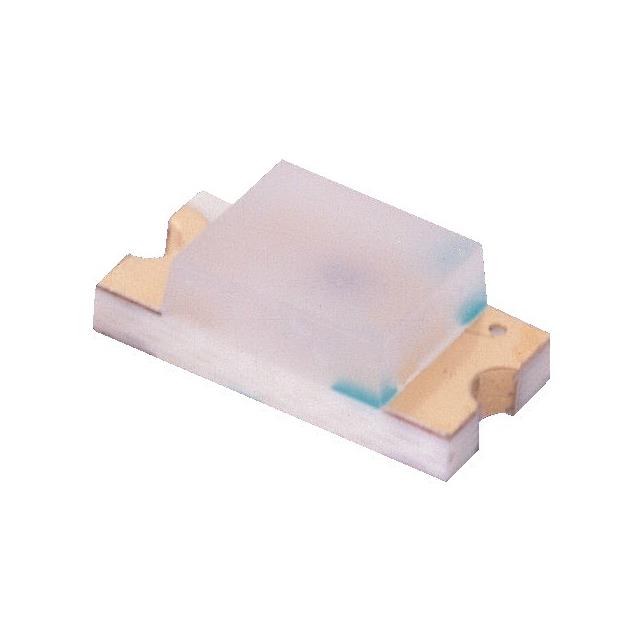

The B1501NB--20D003013U1930 is a surface-mount blue LED from Harvatek Corporation, housed in a 1206 (3216 Metric) package. It features a top-view configuration with a clear lens and independent color output. The device operates at a typical forward voltage of 3.3V and is tested at 20mA. It emits light with a dominant wavelength of 470nm and a peak wavelength characteristic of blue emission. The component is RoHS compliant and suitable for standard SMT assembly processes.
Feature Summary
- Top-emitting design for direct visibility
- Independent single-color output capability
- Clear lens construction for optimal light transmission
Applications
- Electronic device status indication
- Panel indicator lighting
- Consumer electronics signaling
Procurement Notes
Verify the complete part number including suffixes to ensure correct wavelength and binning specifications. Confirm moisture sensitivity level handling requirements during storage and reflow soldering. Check for specific tape and reel packaging details required for automated assembly lines. Ensure compatibility with standard lead-free soldering profiles.
Selection Notes
Select this component for applications requiring a compact blue indicator with top-view visibility. Consider the 1206 footprint for space-constrained PCB layouts. Evaluate the 3.3V forward voltage against system power supply rails. Verify thermal management needs based on the 20mA test current rating.
Part Context
This part belongs to Harvatek's surface-mount LED portfolio, designed for high-reliability electronic applications. The manufacturer specializes in SMD LEDs, infrared components, and semiconductor chips. This specific model represents a standard discrete LED solution for visual feedback in modern electronic devices.
Replacement Considerations
Cross-reference with other 1206 blue LEDs from Harvatek or alternative manufacturers. Ensure identical package dimensions, pin configuration, and electrical characteristics. Verify that substitute parts meet the same RoHS compliance and mounting type requirements.
