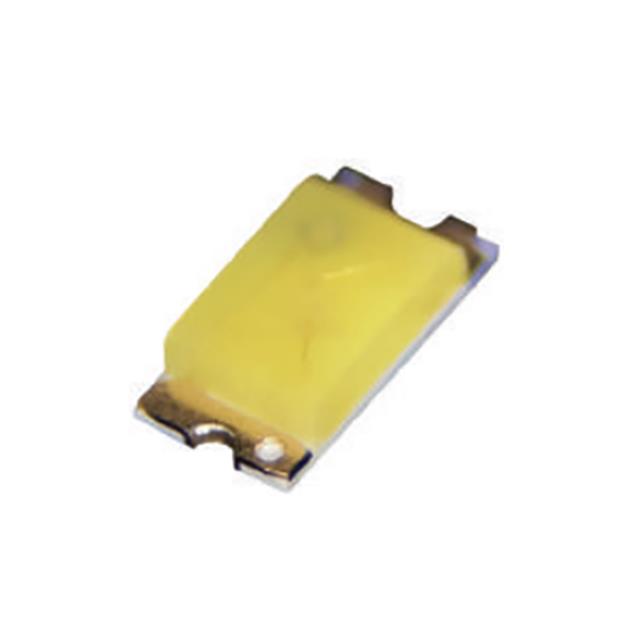

B1501TX--20P001213U1930

$0.10

Description：3.2(L) X 1.6(W) X 1.1(H)MM
Series：HT-150
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ec9fa3cbf5dc Category: LED Indication - Discrete Brand: Harvatek Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：3.2(L) X 1.6(W) X 1.1(H)MM
Series：HT-150
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White
Configuration：Independent
Lens Color：Colorless
Lens Transparency：Diffused
Millicandela Rating：220mcd
Lens Style：Rectangle with Flat Top
Lens Size：2.00mm x 1.60mm
Voltage - Forward (Vf) (Typ)：3.3V
Current - Test：20mA
Viewing Angle：-
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：1206 (3216 Metric)
Supplier Device Package：1206
Size / Dimension：3.20mm L x 1.60mm W
Height (Max)：1.20mm
Grade：-
Qualification：-

Download product information

B1501TX--20P001213U1930

Overview

The B1501TX--20P001213U1930 is a discrete white LED indicator from Harvatek Corporation, designed for surface-mount technology. It features a compact 1206 (3216 Metric) package with dimensions of 3.2mm length, 1.6mm width, and 1.1mm height. The component operates at a typical forward voltage of 3.3V and offers a wide viewing angle of 130 degrees. This top-view LED is engineered for high brightness and reliability in space-constrained electronic designs.

Feature Summary

Compact 1206 surface-mount form factor suitable for tight PCB layouts
Wide 130-degree viewing angle for enhanced visibility
Top-view configuration optimized for direct-panel indication

Applications

Status indicators in embedded systems
Backlighting for slim lighting designs
Direct-view panels and user interfaces

Procurement Notes

Verify the specific ordering suffix to confirm color and electrical parameters, as variations exist within the B1501 series. Ensure compatibility with standard reflow soldering profiles for 1206 packages. Cross-reference the datasheet for thermal dissipation requirements and recommended operating conditions before integration into final assemblies.

Selection Notes

Select this component when a white light source is required in a 1206 footprint. Consider the 3.3V forward voltage drop for power budget calculations. The 130-degree viewing angle makes it suitable for applications requiring broad visibility compared to narrower beam LEDs. Evaluate mechanical constraints regarding the 1.1mm height profile.

Part Context

This part belongs to the B1501 Series, which comprises 3.20×1.60×1.10 mm top-view SMD LEDs known for high brightness and a full color range. The series is generally intended for status indicators, direct-view panels, and backlighting applications where compact size and reliable performance are critical for modern electronic devices.

Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official distributor databases or manufacturer catalogs for equivalent components matching the 1206 package, white color, and similar electrical characteristics.
