B1552USUG20D000113U1930

Overview

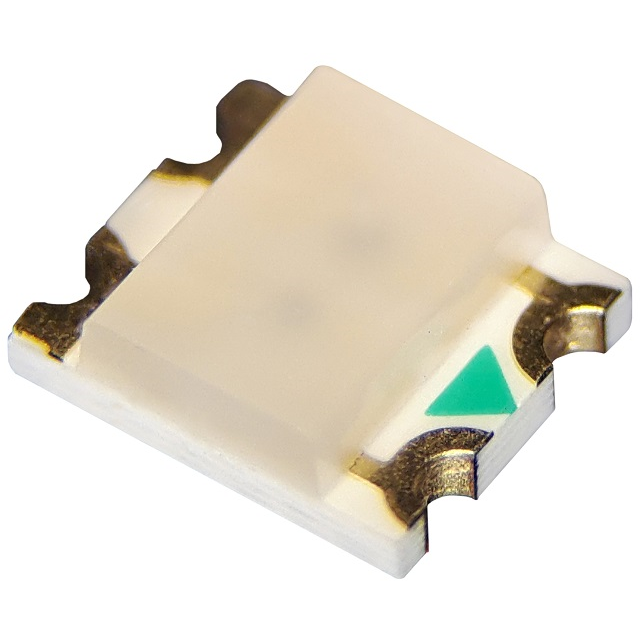

The B1552USUG20D000113U1930 is a red LED indicator from Harvatek Corporation, designed for surface-mount applications. It features a common anode configuration within a 1210 (3225 Metric) package, measuring 3.20mm in length and 2.70mm in width with a maximum height of 1.20mm. The component emits light at a peak wavelength of 632nm and a dominant wavelength of 624nm. Typical forward voltage is 2V at a test current of 20mA, producing a luminous intensity of 71.5mcd. It utilizes a diffused lens with a rectangular shape and flat top.

Feature Summary

• Surface-mount construction in a compact 1210 package
• Common anode electrical configuration
• Diffused lens design for wide viewing angles

Applications

• Status indicators on electronic circuit boards
• Direct-view panel illumination
• Backlighting interfaces requiring red signaling

Procurement Notes

Verify the manufacturer part number against official Harvatek documentation to ensure authenticity. Confirm that the 1210 package dimensions and pinout match your PCB footprint requirements. Check RoHS compliance status and moisture sensitivity level specifications prior to assembly to prevent soldering defects during reflow processes.

Selection Notes

Select this component when a standard red indicator is required in a 1210 footprint. Ensure the circuit design accommodates the 2V forward voltage drop at 20mA. Verify that the diffused lens characteristics meet the visibility needs of the target application environment.

Part Context

This device belongs to the B1552 series of SMD LEDs manufactured by Harvatek Corporation. The series offers various colors and configurations optimized for compact PCB layouts. This specific model provides a balance of brightness and size suitable for dense electronic assemblies.

Replacement Considerations

T1551DND-60P000812U1930
