B1591UD--20C000112U1930

$0.10

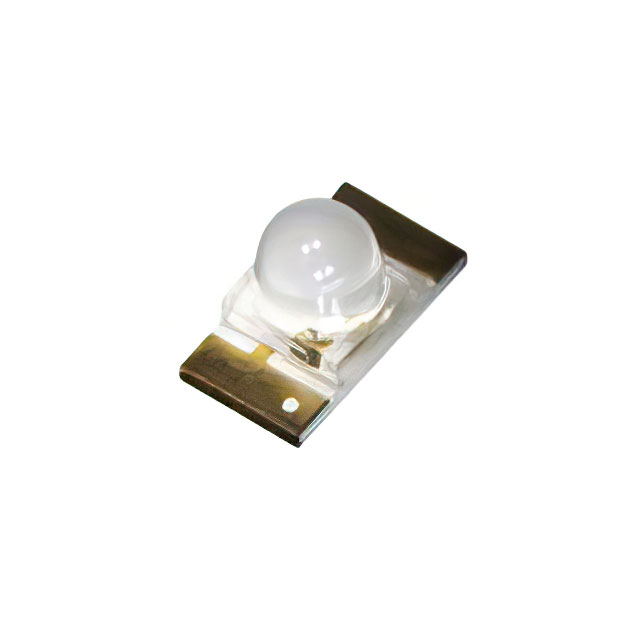

Description：LED ORANGE CLEAR 1206 SMD
Series：B1591UD
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:9114c8fad238 Category: LED Indication - Discrete Brand: Harvatek Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED ORANGE CLEAR 1206 SMD
Series：B1591UD
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Orange
Configuration：-
Lens Color：Colorless
Lens Transparency：Clear
Millicandela Rating：1800mcd
Lens Style：Round with Flat Top
Lens Size：1.62mm Dia
Voltage - Forward (Vf) (Typ)：2V
Current - Test：20mA
Viewing Angle：20°
Mounting Type：Surface Mount
Wavelength - Dominant：605nm
Wavelength - Peak：611nm
Features：-
Package / Case：1206 (3216 Metric)
Supplier Device Package：1206
Size / Dimension：3.20mm L x 1.60mm W
Height (Max)：1.95mm
Grade：-
Qualification：-

Download product information

B1591UD--20C000112U1930

Overview

The B1591UD--20C000112U1930 is a surface-mount indicator LED manufactured by Harvatek Corporation. It features a yellow lens with a diffused finish and utilizes a 0603 (1608 metric) package measuring 1.60mm in length and 0.80mm in width, with a maximum height of 0.70mm. The component emits light at a peak wavelength of 590nm and a dominant wavelength of 584nm. It operates with a typical forward voltage of 2V and achieves a luminous intensity of 35mcd when tested at 20mA. The device provides a viewing angle of 125 degrees and is designed for standard reflow soldering processes.
