B15B-XASK-1-A

Headers, Male Pins Overview

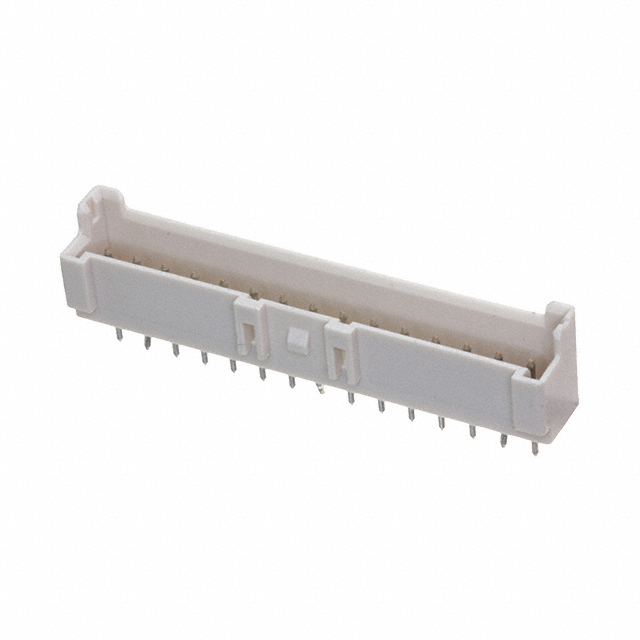

The B15B-XASK-1-A is a vertical header connector from the JST XA series, designed for board-to-cable or wire applications. It features 15 positions with a 2.50mm (0.098 inch) mating pitch and utilizes through-hole mounting. The connector employs male pins with a four-wall shrouded housing to ensure secure alignment. Contact surfaces are tin-plated copper alloy, supporting a rated current of 3A and voltage of 250V AC/DC. It operates within a temperature range of -25°C to +85°C and meets UL94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Four-wall shrouded housing design ensures precise pin alignment and prevents misinsertion during mating.
• Vertical orientation facilitates efficient space utilization on printed circuit boards.
• Tin-plated contacts provide reliable electrical conductivity and corrosion resistance.

Headers, Male Pins Applications

• Board-to-cable interconnections in consumer electronics
• Internal wiring harnesses in industrial control systems
• Signal transmission in automotive electronic modules

Headers, Male Pins Procurement Notes

Verify that the specific suffix '-A' aligns with the required mechanical or material specifications for your application. Confirm compatibility with corresponding JST XA series housings and crimp terminals. Ensure the selected variant meets all regulatory requirements for your target market, including RoHS compliance and thermal ratings.

Headers, Male Pins Selection Notes

Select this component when a 15-position vertical header with a 2.50mm pitch is required. Consider the through-hole termination method and the robust four-wall shroud for applications needing high mating reliability. Evaluate the 3A current rating against the system's power distribution needs to ensure adequate performance margins.

Headers, Male Pins Part Context

This part belongs to the JST XA series, a widely used line of rectangular connectors known for their compact size and reliable locking mechanisms. The XA series offers various position counts and mounting styles, making it suitable for diverse electronic assembly requirements across multiple industries.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other JST XA series headers with identical 15-position count and 2.50mm pitch, such as B15B-XAS variants, provided the mounting style and shroud configuration match the original design constraints.
