B1701TW--20P000314U1930

Overview

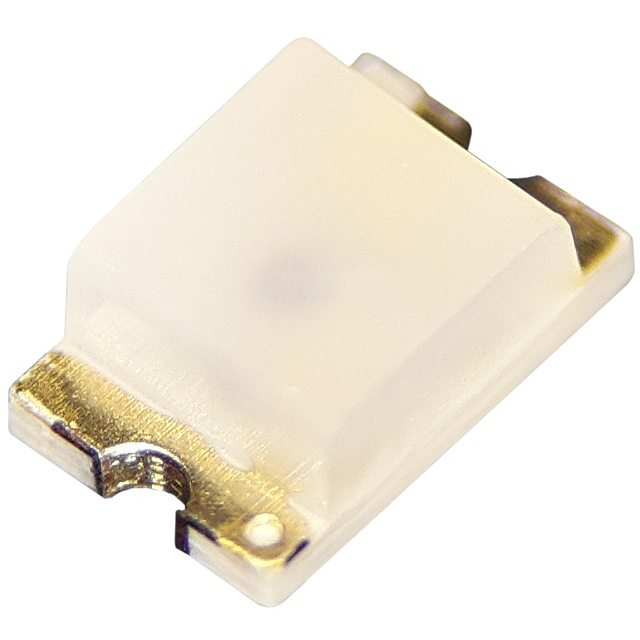

The B1701TW--20P000314U1930 is a discrete surface-mount LED manufactured by Harvatek Corporation. It emits white light with a peak wavelength of 632nm and a forward voltage of 3.2V at a test current of 20mA. The component utilizes a 0805 (2012 Metric) package, measuring 2.0mm in length, 1.3mm in width, and 0.8mm in maximum height. It features a top-view orientation and is designed for indicator applications.

Feature Summary

• Top-view emission configuration for direct visibility
• Compact 0805 surface-mount form factor
• White light output capability

Applications

• Status indicators
• Direct-view panels
• Backlighting

Procurement Notes

Verify the specific datasheet version when sourcing, as ordering suffixes may denote variations in binning or packaging. Confirm RoHS compliance status and MSL rating (Level 2A) against project requirements. Ensure the supplier provides official Harvatek documentation to validate electrical parameters such as forward voltage and peak wavelength before integration.

Selection Notes

Select this component for designs requiring a standard 0805 footprint with top-view visibility. The 3.2V forward voltage is suitable for standard logic-level driving circuits. Consider the physical dimensions of 2.0 x 1.3 x 0.8 mm for PCB space constraints. Verify thermal management needs based on the 20mA test current specification during operation.

Part Context

This part belongs to the B1701 series of SMD LEDs from Harvatek Corporation. The series includes various colors and packages, with the B1701TW specifically denoting the white color variant in the 0805 size. This series is positioned for compact electronic designs requiring reliable surface-mount optoelectronic components.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source data. Cross-referencing requires matching the 0805 package, white color, top-view orientation, and 3.2V forward voltage specifications.
