B18W1UD--20C000114U1930

Overview

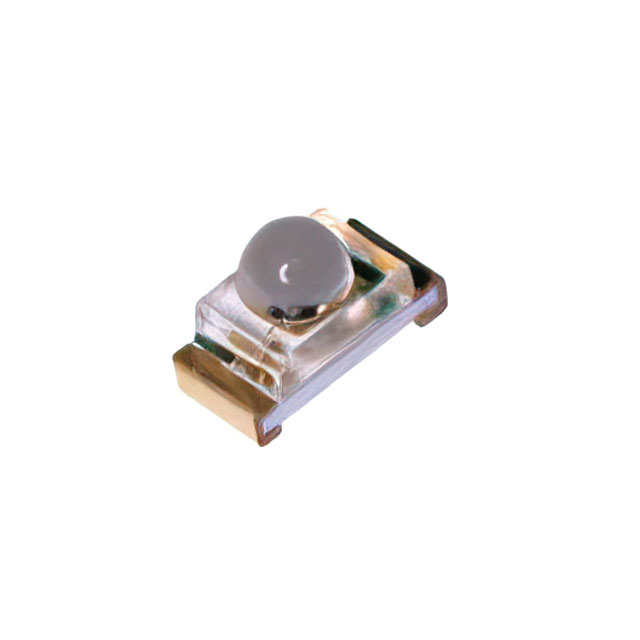

The B18W1UD--20C000114U1930 is a surface-mount indicator LED manufactured by Harvatek Corporation. It features an amber lens with a diffused finish, housed in a compact 0603 (1608 Metric) package measuring 1.60mm in length and 0.80mm in width. The component emits light at a primary wavelength of 605nm with a peak wavelength of 611nm. It operates with a typical forward voltage of 2V and provides a luminous intensity of 45mcd when tested at 20mA. The device utilizes a rectangular lens style with a flat top design.

Feature Summary

• Emits amber light within the visible spectrum for clear visual indication
• Features a diffused lens to provide a wide viewing angle of approximately 125° to 128°
• Constructed with a rectangular flat-top lens style for uniform light distribution

Applications

• Status indication on electronic circuit boards
• Visual signaling in consumer electronics devices
• Indicator lights for control panels and instrumentation

Procurement Notes

Verify the specific part number suffix against official manufacturer documentation to ensure correct lens diffusion and color specifications. Confirm moisture sensitivity level (MSL 2A) requirements for your assembly process. Check RoHS compliance status prior to integration into environmentally regulated products.

Selection Notes

Select this component for applications requiring a low-profile surface-mount indicator with a broad viewing angle. Ensure the PCB footprint matches the 0603 package dimensions. Consider the forward voltage drop when designing the drive circuitry to maintain optimal current levels.

Part Context

This part belongs to the Harvatek Corporation discrete LED series designed for surface-mount technology. It is categorized under optoelectronic indicator LEDs, offering a balance of size and visibility for modern compact electronic designs.
