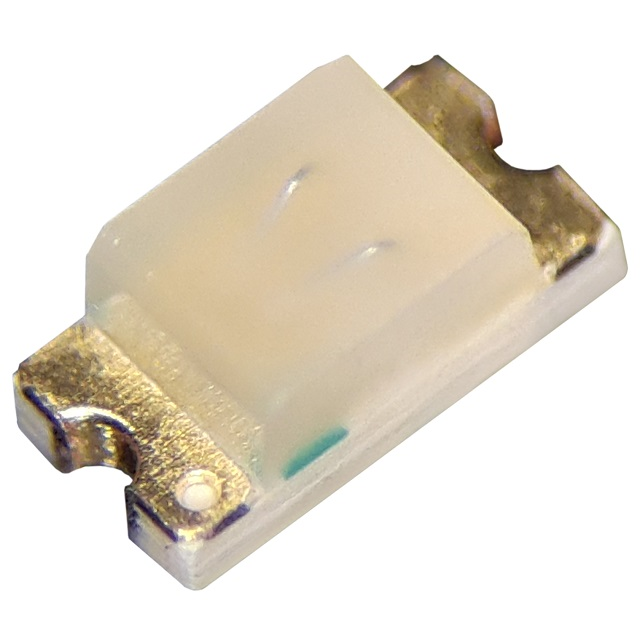

B1911TW--20P001314U1930

$0.09

Description：LED WHITE 0603 SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:52955ce96962 Category: LED Indication - Discrete Brand: Harvatek Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED WHITE 0603 SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White
Configuration：-
Lens Color：-
Lens Transparency：-
Millicandela Rating：260mcd
Lens Style：Rectangle with Flat Top
Lens Size：1.00mm x 0.80mm
Voltage - Forward (Vf) (Typ)：3.2V
Current - Test：20mA
Viewing Angle：130°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：0603 (1608 Metric)
Supplier Device Package：603
Size / Dimension：1.60mm L x 0.80mm W
Height (Max)：0.70mm
Grade：-
Qualification：-

Download product information

B1911TW--20P001314U1930

Overview

The B1911TW--20P001314U1930 is a discrete surface-mount LED indicator manufactured by Harvatek Corporation. It features a white light emission with a top-view lens configuration. The component operates at a typical forward voltage of 3.2V and is housed in a compact 0603 (1608 metric) package, measuring 1.6mm in length, 0.8mm in width, and 0.6mm in height. It is designed for direct integration into printed circuit boards using standard surface-mount technology.

Feature Summary

Compact 0603 form factor suitable for space-constrained layouts
Top-view optical design for clear visibility
White color emission for status indication

Applications

Discrete circuitry status indicators
Consumer electronics panel lighting
Industrial control board signaling

Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure exact electrical and mechanical specifications match the design requirements. Confirm RoHS compliance status and moisture sensitivity level prior to assembly planning. Cross-reference the full part number with authorized distributors to avoid counterfeit components.

Selection Notes

Select this component when a low-profile white indicator is required for tight PCB real estate. The 0603 package size offers a balance between visibility and footprint efficiency. Ensure the driving circuit can supply the necessary current for the specified forward voltage drop without exceeding thermal limits.

Part Context

This part belongs to the broader category of surface-mount chip LEDs produced by Harvatek Corporation. It shares the physical dimensions of the standard 0603 industry package but utilizes Harvatek's specific internal die and lens molding processes. It is distinct from side-view or larger top-view variants within the same product family.

Replacement Considerations

Direct substitutes must match the 0603 footprint, white color, and 3.2V forward voltage. Verify pinout compatibility if alternative manufacturers are considered. Generic 0603 white LEDs may differ in luminous intensity or viewing angle.
