B2005NL

$4.22

Description：CMC 9MH 100MA 2LN TH
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:c7a4ad80075a Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 9MH 100MA 2LN TH
Series：-
Mfr：Pulse Electronics
Package：Tube
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：100mA
DC Resistance (DCR) (Max)：600mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Through Hole
Size / Dimension：0.500" L x 0.400" W (12.70mm x 10.16mm)
Height (Max)：0.510" (12.95mm)
Package / Case：Horizontal, 4 PC Pin
Inductance @ Frequency：9 mH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

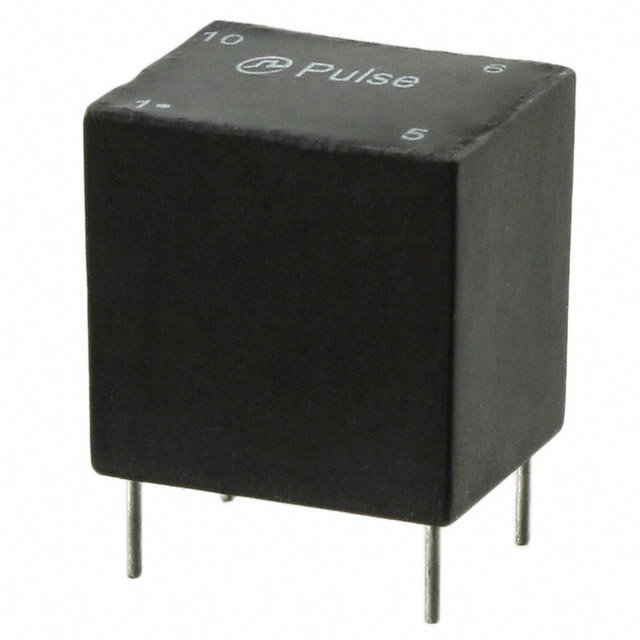

B2005NL

Overview

The B2005NL is a through-hole common mode choke manufactured by Pulse Electronics. It features an inductance of 9 mH and a DC resistance of 600 milliohms. The component operates within a temperature range of -40°C to its maximum rated limit. Designed for printed circuit board mounting, it serves as a dual-line filter for telecommunications applications.

Feature Summary

Dual-line common mode noise filtering capability
Through-hole mounting construction
Optimized for xDSL signal integrity

Applications

ADSL line protection
Telecommunications WAN interfaces
xDSL equipment filtering

Procurement Notes

Verify RoHS compliance status as documentation indicates non-compliance. Confirm HTS classification codes (8504508000 US, 8504500090 EMEA) for customs purposes. Ensure datasheet version matches current production specifications before ordering.

Selection Notes

Select this component for applications requiring 9 mH inductance at 100 kHz. Verify that the 100 mA current rating meets system requirements. Ensure PCB layout accommodates through-hole pins and 12.7 mm height clearance.

Part Context

Part of the B2005 series from Pulse Electronics. Designed specifically for high-performance common mode filtering in digital subscriber line environments. Provides reliable noise suppression for sensitive telecommunication data lines.

Replacement Considerations

Consult official distributor databases for direct substitutes. Verify pinout compatibility and inductance tolerance before replacing. No public substitute part numbers are confirmed in available documentation.
