B2013FNL

$2.07

Description：CMC 9MH 100MA 2LN SMD
Series：-
Mfr：Pulse Electronics
Package：Tube

SKU:f4d9259644c2 Category: Common Mode Chokes Brand: Pulse Electronics

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 9MH 100MA 2LN SMD
Series：-
Mfr：Pulse Electronics
Package：Tube
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：100mA
DC Resistance (DCR) (Max)：1Ohm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：0°C ~ 70°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.566" L x 0.475" W (14.37mm x 12.07mm)
Height (Max)：0.350" (8.89mm)
Package / Case：Vertical, 8 Gull Wing
Inductance @ Frequency：9 mH @ 100 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

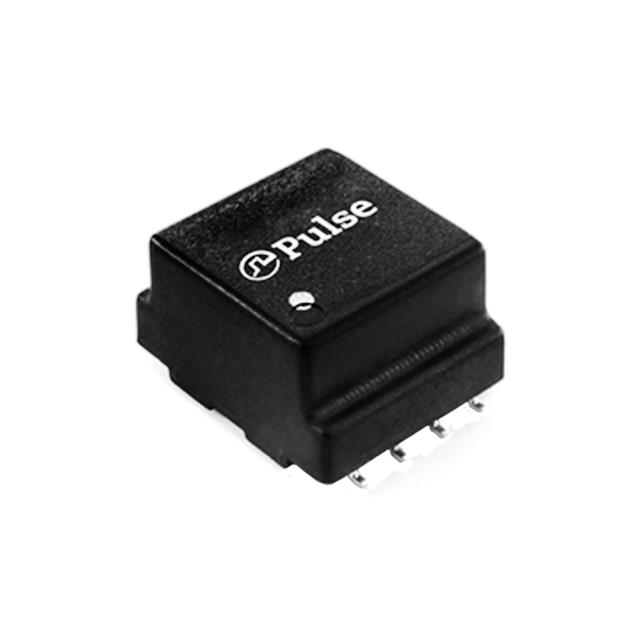

B2013FNL

Overview

The B2013FNL is a Surface Mount Device (SMD) Common Mode Choke manufactured by Pulse Electronics. Designed for ADSL applications, this component features an inductance of 9000 uH and a maximum DC resistance of 1 Ohm. It utilizes an SMD/SMT termination type for PCB mounting. The device is classified under the product category of Common Mode Chokes/Filters.

Feature Summary

Engineered specifically for ADSL signal filtering applications
Provides common mode noise suppression via high inductance design
Utilizes surface mount technology for automated assembly

Applications

ADSL line interface circuits
Digital subscriber line modems
Telecommunications equipment requiring EMI suppression

Procurement Notes

Verify the exact datasheet specifications against the manufacturer's official documentation before integration. Confirm that the SMD package dimensions and pinout align with the target PCB layout. Ensure the component meets all relevant environmental compliance standards required for the final assembly process.

Selection Notes

Select this component when designing ADSL interfaces requiring specific common mode choke characteristics. Evaluate the 9000 uH inductance value against circuit requirements to ensure effective noise filtering without impacting signal integrity. Consider the 1 Ohm DC resistance impact on power consumption within the application design.

Part Context

This part belongs to the broader category of passive components, specifically inductors and chokes. It serves as a critical element in telecommunications hardware, distinguishing itself through its specialized ADSL application focus and surface mount form factor provided by Pulse Electronics.

Replacement Considerations

Cross-reference with other SMD common mode chokes offering similar inductance values. Verify compatibility regarding physical footprint and electrical parameters such as DC resistance and current handling capabilities before substituting.
