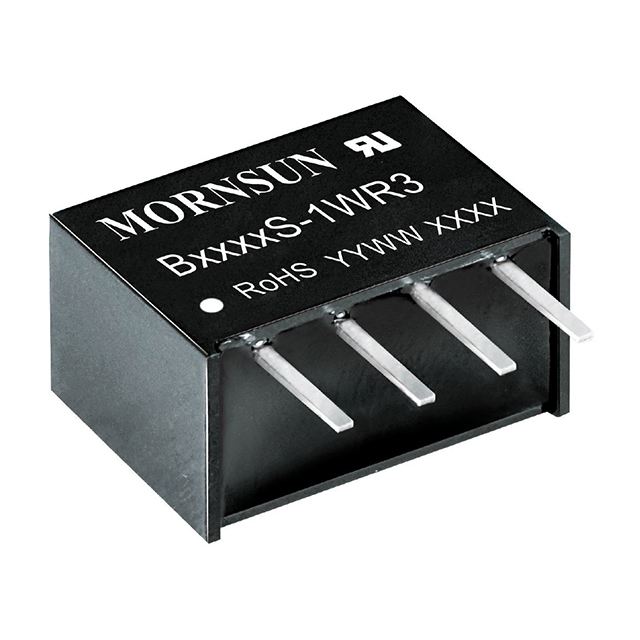

B2409S-1WR3

B2409S-1WR3 is listed in the DC DC Converters range at ChipApex. The manufacturer field lists Mornsun America, LLC. Its product description is DC DC CONVERTER 9V 1W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for B2409S-1WR3

• Description：DC DC CONVERTER 9V 1W
• Series：B_S-1WR3 (1W)
• Mfr：Mornsun America, LLC
• Package：Tube
• Type：Isolated Module
• Number of Outputs：1
• Voltage - Input (Min)：21.6V
• Voltage - Input (Max)：26.4V
• Voltage - Output 1：9V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：111mA
• Power (Watts)：999 mW
• Voltage - Isolation：1.5 kV
• Applications：ITE (Commercial)
• Features：-
• Operating Temperature：-40°C ~ 105°C (With Derating)
• Efficiency：80%
• Mounting Type：Through Hole
• Package / Case：4-SIP Module
• Size / Dimension：0.46" L x 0.24" W x 0.40" H (11.6mm x 6.0mm x 10.2mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：CB, CE, cURus, UL
• Standard Number：62368-1

DC DC Converters datasheet and documents for B2409S-1WR3
