Product Detailed Parameters
- Description：LED GREEN/RED CLEAR 1210 SMD R/A
- Series：B2592UONG20
- Mfr：Harvatek Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green, Red
- Configuration：Common Anode
- Lens Color：-
- Lens Transparency：Clear
- Millicandela Rating：285mcd Green, 45mcd Red
- Lens Style：Round with Domed Top
- Lens Size：1.62mm Dia
- Voltage - Forward (Vf) (Typ)：3.3V Green, 2V Red
- Current - Test：20mA Green, 20mA Red
- Viewing Angle：20°, 154°, 20°, 120°
- Mounting Type：Surface Mount, Right Angle
- Wavelength - Dominant：525nm Green, 631nm Red
- Wavelength - Peak：520nm Green, 639nm Red
- Features：-
- Package / Case：1210 (3225 Metric)
- Supplier Device Package：1210
- Size / Dimension：3.20mm L x 2.55mm W
- Height (Max)：1.70mm
- Grade：-
- Qualification：-
Download product information
Overview

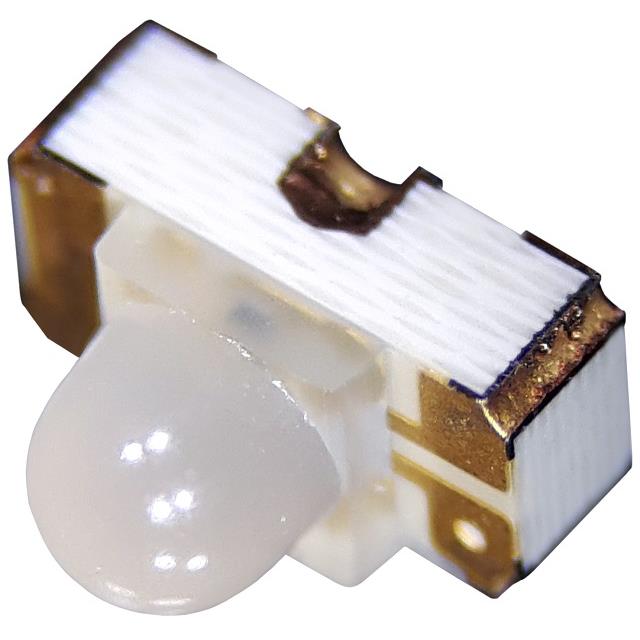

The B2592UONG20C0002L2U1930 is a dual-color surface-mount LED indicator from Harvatek Corporation, housed in a 1210 (3225 Metric) package with dimensions of 3.2mm length, 2.55mm width, and 1.6mm height. It features a common anode configuration with green and red chips emitting at 525nm and 631nm respectively. The forward voltage is specified as 3.3V for the green element and 2V for the red element. This discrete component is designed for clear lens applications and is currently active in production.
Feature Summary
- Dual-color output combining green and red emission within a single compact SMD footprint
- Common anode electrical configuration simplifying circuit design
- Side-view chip LED architecture optimized for visibility
Applications
- Discrete circuit status indication
- Electronic device front panel indicators
- Consumer electronics signal signaling
Procurement Notes
Verify the specific datasheet revision to confirm thermal resistance values and maximum forward current ratings before integration. Ensure that the common anode pinout matches the target PCB silkscreen and schematic requirements. Confirm RoHS compliance status if environmental regulations apply to the final assembly. Check for any recent updates to the mechanical drawing regarding solder pad definitions.
Selection Notes
Select this component when space constraints require a dual-color indicator in a standard 1210 footprint. The common anode structure reduces control line complexity compared to independent cathode configurations. Consider the specific wavelength outputs for visibility requirements against ambient lighting conditions. Evaluate the forward voltage drop to ensure compatibility with the driving logic levels of the microcontroller or driver IC.
Part Context
This part belongs to Harvatek's Surface Mount CHIP LEDs product line, specifically categorized under Optoelectronics and LED Indication - Discrete components. It represents a solution for applications requiring distinct color coding without occupying multiple board areas. The series focuses on providing reliable optical signaling in compact electronic assemblies.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Cross-referencing requires matching the 1210 package size, common anode configuration, and specific 525nm/631nm wavelengths.
