B2601TW--20P000323U1930

$0.09

Description：LED WHITE 1205 SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:2e31075bfb9b Category: LED Indication - Discrete Brand: Harvatek Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED WHITE 1205 SMD
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：White
Configuration：-
Lens Color：-
Lens Transparency：-
Millicandela Rating：200mcd
Lens Style：Square with Flat Top
Lens Size：1.20mm
Voltage - Forward (Vf) (Typ)：3V
Current - Test：20mA
Viewing Angle：130°
Mounting Type：Surface Mount
Wavelength - Dominant：-
Wavelength - Peak：-
Features：-
Package / Case：1205 (3212 Metric)
Supplier Device Package：1205
Size / Dimension：3.20mm L x 1.20mm W
Height (Max)：1.20mm
Grade：-
Qualification：-

Download product information

B2601TW--20P000323U1930

Overview

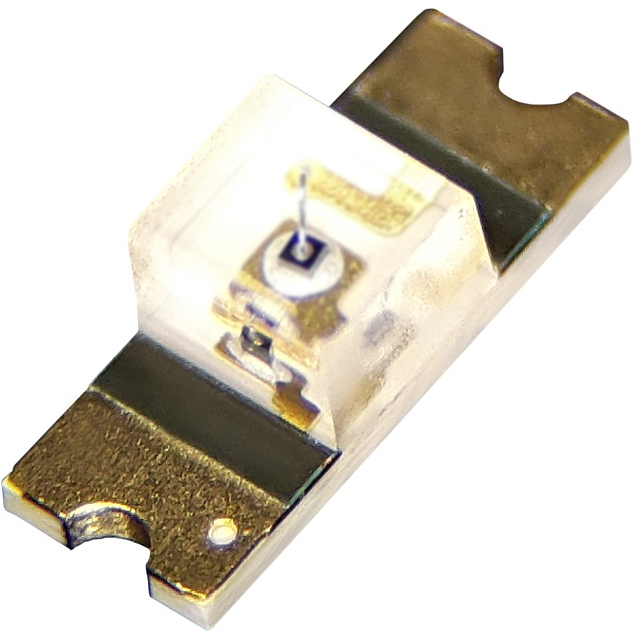

The B2601TW--20P000323U1930 is a surface-mount LED from the Harvatek B2601 Series. It features a compact top-view package with dimensions of 3.20 mm in length, 1.20 mm in width, and 1.20 mm in height. The component is designed for slim lighting applications, status indicators, and backlit interfaces.

Feature Summary

Compact SMD form factor suitable for space-constrained designs
Top-view emission profile for direct visibility
Integrated construction for reliable surface mounting

Applications

Slim lighting designs
Status indicators
Backlit interfaces

Procurement Notes

Verify the specific suffix codes against official Harvatek documentation to confirm exact color binning and forward voltage characteristics. Ensure the ordering part number matches the required packaging configuration. Cross-reference the datasheet for thermal management requirements during assembly.

Selection Notes

Select this component when a low-profile top-view LED is required for consumer electronics or industrial panels. Evaluate the mechanical constraints of the PCB layout against the 3.20x1.20mm footprint. Confirm that the optical intensity meets the visibility requirements for the intended application environment.

Part Context

This part belongs to the B2601 Series, which offers various colors including white, red, green, and blue. The series is engineered for high reliability in modern electronic devices where board space is limited. It represents a standard solution for visual signaling in compact hardware.

Replacement Considerations

Consult official cross-reference lists for compatible components. Verify pinout compatibility and luminous intensity specifications before substituting with alternative manufacturers' LEDs.
