B2612UONB20D000112U1930

Overview

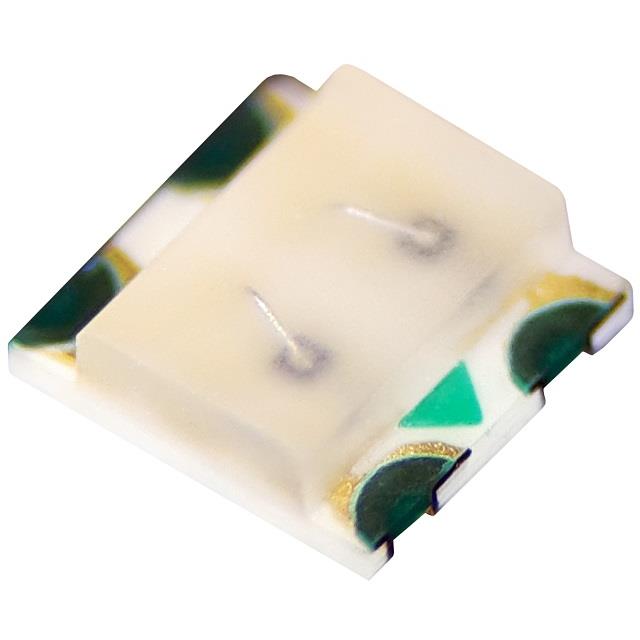

The B2612UONB20D000112U1930 is a dual-color surface-mount LED indicator manufactured by Harvatek Corporation. It integrates blue and red light-emitting diodes within a compact 0606 (1616 metric) package, measuring 1.60mm in length and 1.50mm in width with a maximum height of 0.90mm. The component emits at peak wavelengths of 470nm for blue and 631nm for red. Typical forward voltages are specified at 3.3V for the blue element and 2V for the red element, tested at a current of 20mA. Luminous intensity ratings reach 71.5mcd, providing high visibility for status indication.

Feature Summary

• Dual-color configuration combining blue and red LEDs in a single discrete package
• Compact 0606 surface-mount footprint designed for space-constrained PCB layouts
• High luminous intensity output suitable for clear visual status signaling

Applications

• Low-power consumption industrial equipment indicators
• Reliable warning signal modules for electronic devices
• Status indication on consumer electronics panels

Procurement Notes

Verify the specific ordering suffix to confirm exact wavelength tolerances and binning classifications required for your application. Ensure compatibility with standard reflow soldering profiles for 0606 packages. Cross-reference the datasheet for reverse voltage limits and thermal dissipation requirements during continuous operation to maintain long-term reliability and consistent optical performance.

Selection Notes

Select this component when a dual-color status indicator is needed in a minimal footprint. The 0606 size allows for dense board arrangements compared to larger 1205 or 1210 packages. Consider the specific viewing angles and intensity requirements against the 71.5mcd rating. Ensure the driving circuitry can accommodate the distinct forward voltage differences between the blue and red elements without requiring complex level shifting.

Part Context

This part belongs to Harvatek’s discrete LED indicator series, focusing on compact form factors for modern electronics. The B26xx series typically utilizes top-view or side-view lens styles to optimize light emission directionality. These components are engineered for high brightness and reliability in industrial and consumer applications where space is limited but visual feedback is critical for user interaction and system monitoring.

Replacement Considerations

Direct substitutes must match the 0606 (1616 metric) package dimensions and dual-color blue/red configuration. Verify that alternative parts offer comparable luminous intensity and forward voltage characteristics to ensure identical circuit behavior. Check for equivalent viewing angles and lens transparency to maintain consistent visual appearance across production batches.
