B2612USUG20D000312U1930

Overview

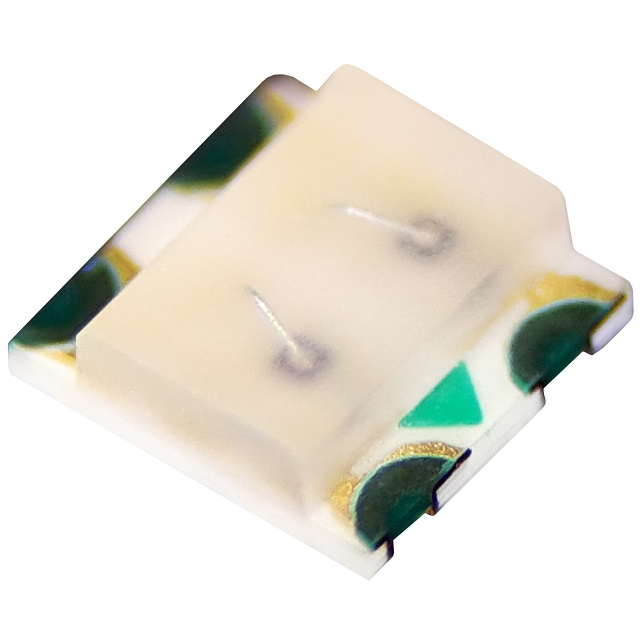

The B2612USUG20D000312U1930 is a dual-color surface-mount LED by Harvatek Corporation, featuring red and yellow-green chips in a 0606 (1.6 x 1.5 mm) package. It emits dominant wavelengths of 624nm (red) and 571nm (yellow-green). The device has a typical forward voltage of 2V for red and 3.3V for green, with a viewing angle of 140° for both colors. It utilizes a diffused lens style.

Feature Summary

• Dual-color configuration combining red and yellow-green LEDs within a single compact SMD footprint.
• Diffused lens design providing a wide 140-degree viewing angle for uniform light distribution.

Applications

• Status indication in consumer electronics
• Indicator lights for industrial control panels
• Signal signaling in automotive instrumentation

Procurement Notes

Verify the specific ordering suffix to confirm the exact binning and packaging format required for your assembly line. Ensure compatibility with standard reflow soldering profiles for 0606 packages. Cross-reference the datasheet for moisture sensitivity level handling procedures prior to mounting.

Selection Notes

Select this component when space constraints require a dual-color indicator in a 0606 form factor. Consider the 140-degree viewing angle for visibility requirements. Verify that the 2V and 3.3V forward voltage drops align with your circuit's drive capabilities and current limiting resistor calculations.

Part Context

This part belongs to Harvatek's discrete LED indicator series, designed for high-density PCB layouts. It complements other SMD LEDs like the B1931USD series but offers a unique dual-color capability in a slightly larger 0606 package compared to standard 0603 components.

Replacement Considerations

Direct substitutes must match the 0606 package dimensions, dual-color red/yellow-green spectrum, and similar forward voltage characteristics. Verify pinout compatibility if replacing in existing designs.
