Product Detailed Parameters
- Description：LED GREEN/RED CLEAR 1205 SMD
- Series：B2632USNG20
- Mfr：Harvatek Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Green, Red
- Configuration：Independent
- Lens Color：-
- Lens Transparency：Clear
- Millicandela Rating：285mcd Green, 180mcd Red
- Lens Style：Square with Flat Top
- Lens Size：1.20mm
- Voltage - Forward (Vf) (Typ)：3.3V Green, 2V Red
- Current - Test：20mA
- Viewing Angle：130° Green, 130° Red
- Mounting Type：Surface Mount
- Wavelength - Dominant：525nm Green, 624nm Red
- Wavelength - Peak：520nm Green, 632nm Red
- Features：-
- Package / Case：1205 (3212 Metric)
- Supplier Device Package：1205
- Size / Dimension：3.20mm L x 1.20mm W
- Height (Max)：0.90mm
- Grade：-
- Qualification：-
Download product information
Overview

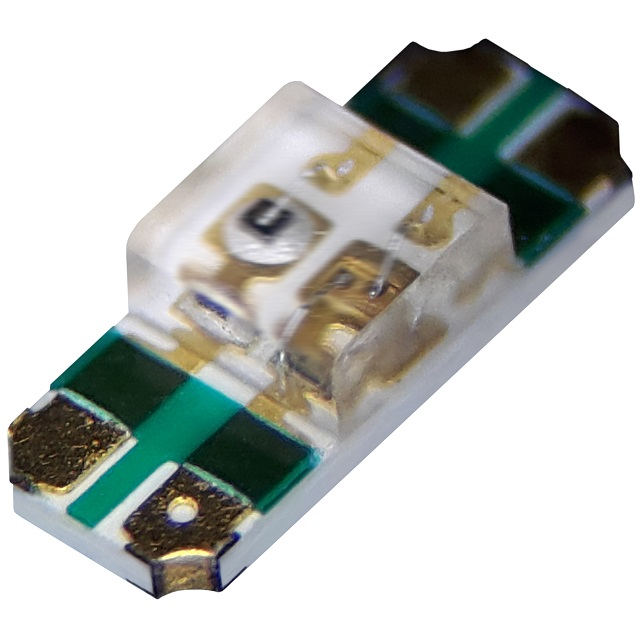

The B2632USNG20C000623U1930 is a dual-color LED indicator manufactured by Harvatek Corporation, designed for surface-mount technology applications. This component features a blue and red color configuration within a 1205 (3212 metric) package. The device operates with a typical forward voltage of 3.3V for the blue element and 2V for the red element. It provides luminous intensities of 45mcd for blue and 71.5mcd for red at a test current of 20mA. The optical characteristics include peak wavelengths of 468nm for blue and 632nm for red, with a wide viewing angle of 130 degrees.
Feature Summary
- Dual-color output combining blue and red light sources in a single compact package
- Wide 130-degree viewing angle for enhanced visibility from various perspectives
- Surface-mount construction suitable for automated PCB assembly processes
Applications
- Electronic equipment status indication
- Power supply signal indicators
- Consumer appliance control panels
Procurement Notes
Verify that the specific suffix matches the required wavelength and intensity specifications. Confirm the package type aligns with the target PCB footprint requirements. Ensure the operating temperature range meets the environmental conditions of the intended application.
Selection Notes
Select this component when a compact dual-color solution is required for space-constrained designs. Consider the 130-degree viewing angle for applications requiring broad visibility. Evaluate the forward voltage requirements against the available drive circuit capabilities to ensure proper operation.
Part Context
This part belongs to the B2632USNB20 series of dual-color LEDs from Harvatek Corporation. The series offers various color combinations and packaging options for different industrial and consumer electronics needs. The 1205 package size provides a balance between visibility and board space efficiency.
Replacement Considerations
Check datasheets for alternative dual-color LEDs in the 1205 package. Verify compatibility of pin configurations and electrical parameters before substitution.
