Product Detailed Parameters
- Description：LED RGB CLEAR 1205 SMD
- Series：B26B3RGB-20
- Mfr：Harvatek Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Common Anode
- Lens Color：-
- Lens Transparency：Clear
- Millicandela Rating：71.5mcd Red, 285mcd Green, 71.5mcd Blue
- Lens Style：Square
- Lens Size：1.20mm
- Voltage - Forward (Vf) (Typ)：2V Red, 3.3V Green, 3.3V Blue
- Current - Test：20mA Red, 20mA Green, 20mA Blue
- Viewing Angle：120°, 120°, 145°, 155°, 125°, 140°
- Mounting Type：Surface Mount
- Wavelength - Dominant：624nm Red, 525nm Green, 470nm Blue
- Wavelength - Peak：632nm Red, 520nm Green, 468nm Blue
- Features：-
- Package / Case：1205 (3212 Metric)
- Supplier Device Package：1205
- Size / Dimension：3.20mm L x 1.20mm W
- Height (Max)：0.90mm
- Grade：-
- Qualification：-
Download product information
Overview

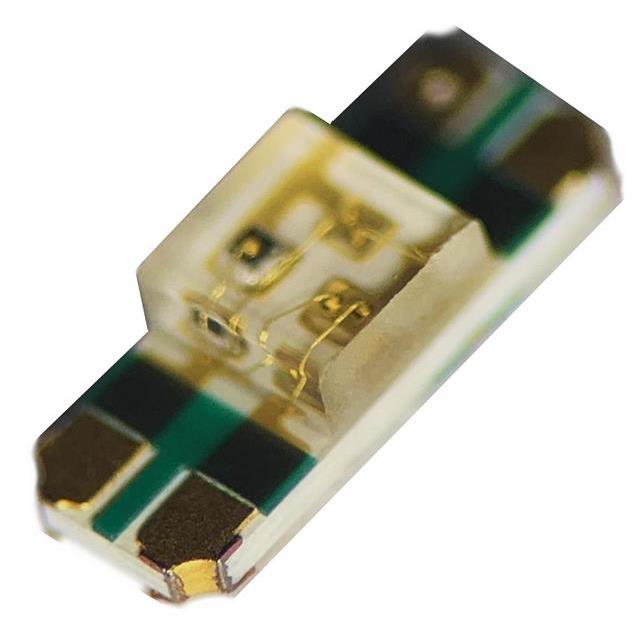

The B26B3RGB-20C000123U1930 is a surface-mount RGB LED indicator manufactured by Harvatek Corporation. It features a common anode configuration within a 1205 (3212 Metric) package, measuring 3.20mm in length, 1.20mm in width, and a maximum height of 0.90mm. The component emits red light at a peak wavelength of 632nm with a forward voltage of 2V, green light at 520nm with a forward voltage of 3.3V, and blue light at 468nm with a forward voltage of 3.3V. Typical luminous intensity values are 71.5mcd for red, 285mcd for green, and 71.5mcd for blue, tested at 20mA per color.
Feature Summary
- Integrates red, green, and blue emitters into a single compact surface-mount package
- Utilizes a common anode electrical configuration for simplified circuit control
- Features a transparent square lens design to facilitate uniform light distribution
Applications
- Status indication in consumer electronic devices
- Visual signaling in industrial control panels
- Multi-color lighting effects in automotive interior applications
Procurement Notes
Verify the specific suffix codes against official datasheets to confirm exact optical and electrical characteristics. Ensure compatibility with standard reflow soldering profiles for surface-mount assembly. Confirm RoHS compliance status and moisture sensitivity level requirements for storage and handling procedures prior to manufacturing integration.
Selection Notes
Select this component when space-constrained designs require multi-color output from a single footprint. The 1205 package size offers a balance between visibility and board real estate. Consider the common anode topology if shared positive rail routing is preferred. Evaluate the distinct luminous intensities to ensure adequate visibility across all three colors in the target application environment.
Part Context
This part belongs to the B26B3RGB series of RGB LEDs produced by Harvatek Corporation. It is categorized under discrete optoelectronic indicators designed for surface-mount technology. The product line focuses on providing compact, high-intensity multi-color solutions for modern electronic assemblies requiring visual feedback or aesthetic lighting.
Replacement Considerations
Consult official manufacturer substitution lists for verified equivalents. Cross-reference package dimensions, pin configurations, and electrical ratings before implementing any alternative components.
