Product Detailed Parameters

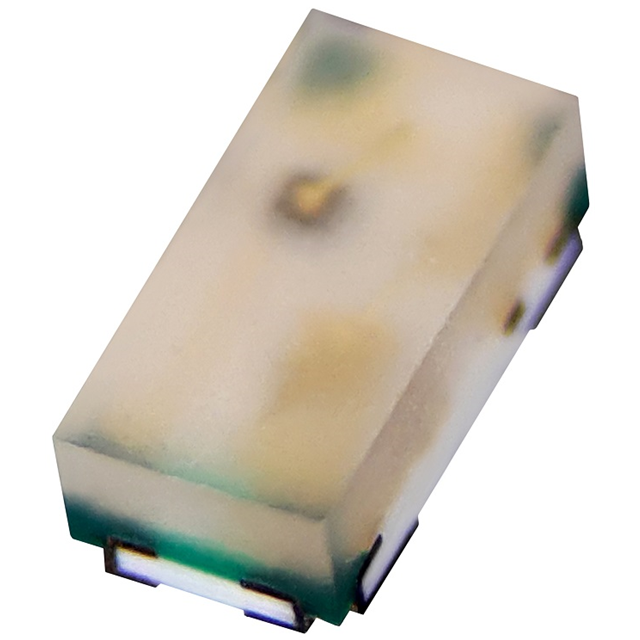

- Description：LED ORANGE/YLW-GRN DIFF 0603 SMD
- Series：B2972UDUG20
- Mfr：Harvatek Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Orange, Yellow-Green
- Configuration：Independent
- Lens Color：-
- Lens Transparency：Diffused
- Millicandela Rating：71.5mcd Orange, 71.5mcd Yellow-Green
- Lens Style：Rectangle with Flat Top
- Lens Size：1.60mm x 0.80mm
- Voltage - Forward (Vf) (Typ)：2V Orange, 2.1V Yellow-Green
- Current - Test：20mA
- Viewing Angle：140° Orange, 160° Yellow-Green
- Mounting Type：Surface Mount
- Wavelength - Dominant：605nm Orange, 571nm Yellow-Green
- Wavelength - Peak：611nm Orange, 573nm Yellow-Green
- Features：-
- Package / Case：0603 (1608 Metric)
- Supplier Device Package：603
- Size / Dimension：1.60mm L x 0.80mm W
- Height (Max)：0.60mm
- Grade：-
- Qualification：-
Download product information
FAQ
What is the primary function of the B2972UDUG20D000214U1930 component?
It functions as a surface-mount indicator LED designed for visual status indication in electronic circuits.
Does this component utilize a diffused lens?
Yes, the component features a diffused lens to scatter emitted light and reduce glare.
