B2C502B

Overview

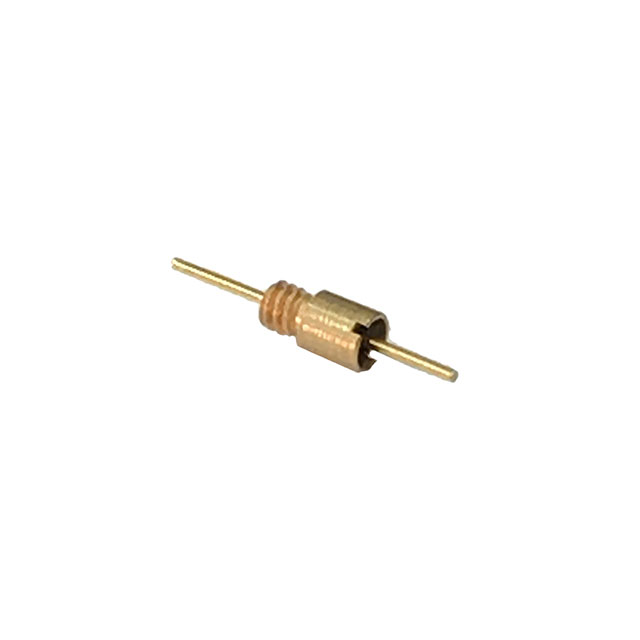

The B2C502B is a feed-through capacitor designed for electromagnetic interference (EMI) filtering applications. It features a capacitance of 5000 pF and a voltage rating of 100 VDC. The component provides an insertion loss of 30 dB at 100 MHz, ensuring effective noise suppression in high-frequency circuits. Constructed with axial leads, it offers a compact solution for integrating EMI mitigation into power or signal lines where space constraints exist.

Feature Summary

• Provides effective attenuation of high-frequency electromagnetic interference signals
• Utilizes feed-through architecture for direct line integration
• Features axial lead configuration for through-hole mounting

Applications

• General EMI filtering in electronic equipment
• Power line noise suppression
• Signal line interference reduction

Procurement Notes

Verify the specific manufacturer designation against authorized distributor lists to ensure authenticity. Confirm that the axial lead pitch and body dimensions match the target PCB layout requirements. Check for any RoHS compliance documentation if environmental regulations apply to the end product assembly process.

Selection Notes

Select this component when a 5000 pF capacitance value is required for high-frequency noise shunting. Ensure the operating voltage does not exceed 100 VDC. Consider the physical size of the axial package relative to available board space compared to surface-mount alternatives.

Part Context

This component belongs to the category of passive EMI suppression devices manufactured by EMI FILTER COMPANY. Feed-through capacitors like the B2C502B are distinct from standard ceramic capacitors due to their specialized internal structure designed to minimize parasitic inductance, thereby maintaining performance at higher frequencies.
