Product Detailed Parameters
- Description：LED BLUE/ORANGE CLEAR 0605 SMD
- Series：B2G32UDNB20
- Mfr：Harvatek Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Blue, Orange
- Configuration：Independent
- Lens Color：-
- Lens Transparency：Clear
- Millicandela Rating：112.5mcd Orange, 71.5mcd Blue
- Lens Style：Rectangle with Flat Top
- Lens Size：1.25mm x 1.10mm
- Voltage - Forward (Vf) (Typ)：2V Orange, 3.3V Blue
- Current - Test：20mA
- Viewing Angle：130° Orange, 135° Blue
- Mounting Type：Surface Mount
- Wavelength - Dominant：605nm Orange, 470nm Blue
- Wavelength - Peak：611nm Orange, 468nm Blue
- Features：-
- Package / Case：0605 (1613 Metric)
- Supplier Device Package：605
- Size / Dimension：1.60mm L x 1.25mm W
- Height (Max)：0.50mm
- Grade：-
- Qualification：-
Download product information
Overview

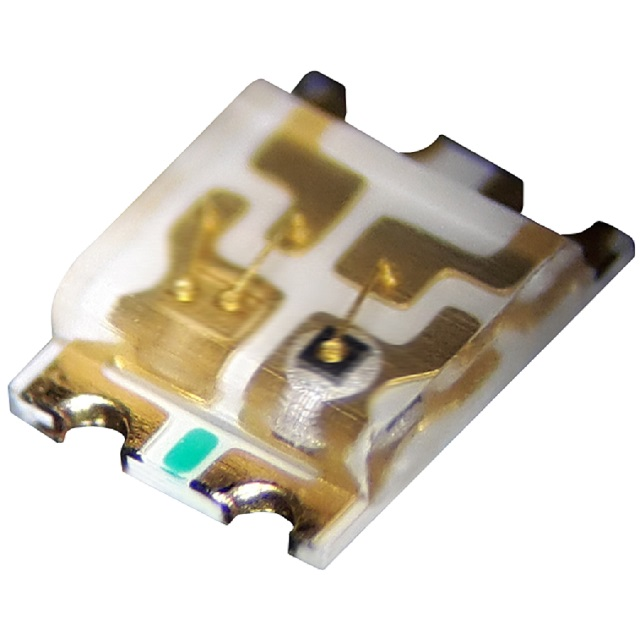

The B2G32UDNB20C000113U1930 is a dual-color surface-mount LED by Harvatek Corporation, featuring orange and blue emitters in a compact 0605 (1.6mm x 1.25mm) package with a maximum height of 0.4mm. It operates with a typical forward voltage of 2V for the orange channel and 3.3V for the blue channel at a test current of 20mA. The device offers wide viewing angles of 130° for orange and 135° for blue, ensuring broad visibility. Designed for standard reflow soldering processes, it complies with RoHS standards and holds an MSL rating of 2A.
Feature Summary
- Dual-color configuration combining orange and blue light sources within a single component
- Ultra-low profile 0.4mm height suitable for space-constrained printed circuit board layouts
- Wide viewing angles of 130° and 135° to maximize light dispersion and visibility
Applications
- Status indicators on consumer electronic devices
- Backlighting for control panels and user interfaces
- Signal indication in compact industrial equipment
Procurement Notes
Verify the specific datasheet version and electrical characteristics directly from Harvatek Corporation before integration. Confirm that the 0605 footprint dimensions and thermal requirements align with your PCB design constraints. Ensure compliance with RoHS directives and MSL handling procedures during storage and assembly to maintain component integrity.
Selection Notes
Select this component when a compact dual-color solution is required for status signaling or backlighting applications. The low profile and wide viewing angles make it suitable for slim device designs where visual accessibility from multiple angles is critical. Consider the distinct forward voltages for proper driver circuit design.
