Product Detailed Parameters
- Description：LED AMB/YL/GRN CLEAR 0605 SMD
- Series：B2G32UYUG20
- Mfr：Harvatek Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Amber, Yellow-Green
- Configuration：Independent
- Lens Color：-
- Lens Transparency：Clear
- Millicandela Rating：112.5mcd Amber, 71.5mcd Yellow-Green
- Lens Style：Rectangle with Flat Top
- Lens Size：1.10mm x 1.25mm
- Voltage - Forward (Vf) (Typ)：2V Amber, 2.1V Yellow-Green
- Current - Test：20mA Amber, 20mA Yellow-Green
- Viewing Angle：105°, 130°, 115°, 135°
- Mounting Type：Surface Mount
- Wavelength - Dominant：589nm Amber, 571nm Yellow-Green
- Wavelength - Peak：591nm Amber, 573nm Yellow-Green
- Features：-
- Package / Case：0605 (1613 Metric)
- Supplier Device Package：605
- Size / Dimension：1.60mm L x 1.25mm W
- Height (Max)：0.50mm
- Grade：-
- Qualification：-
Download product information
Overview

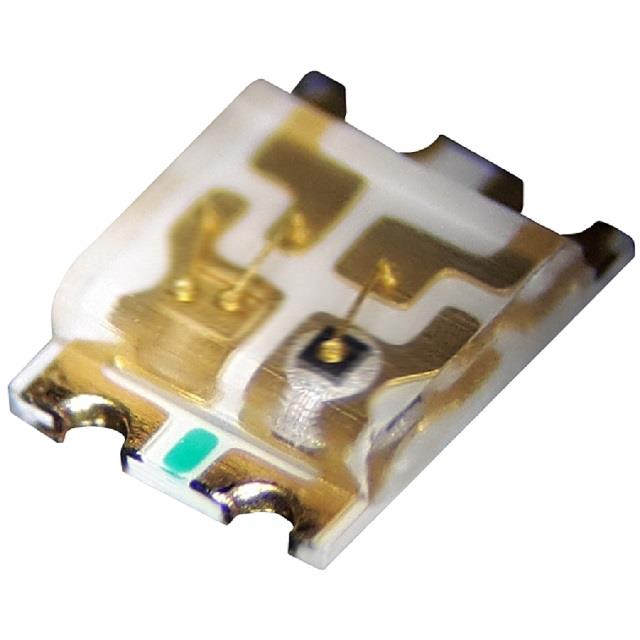

The B2G32UYUG20C000113U1930 is a discrete surface-mount LED manufactured by Harvatek Corporation. It features an amber and yellow-green color combination with a clear lens finish. The component utilizes a 0605 (1608 metric) package, measuring 1.6mm in length, 1.25mm in width, and 0.4mm in height. It operates with a typical forward voltage of 2V and emits light at a primary wavelength of 589nm. The device is designed for indicator applications and complies with RoHS standards.
Feature Summary
- Combines amber and yellow-green emission within a single compact SMD package
- Features a clear lens style for direct visibility
- Supports standard surface mount assembly processes
Applications
- Status indicators on electronic circuit boards
- Control panel illumination
- Signal indication in consumer electronics
Procurement Notes
Verify the specific part number against official Harvatek documentation to confirm the exact color configuration and electrical parameters. Ensure that the 0605 footprint dimensions align with the PCB layout requirements. Confirm RoHS compliance status through the manufacturer's current environmental declaration before finalizing procurement specifications.
Selection Notes
Select this component when space-constrained designs require dual-color indication or specific spectral output in a low-profile package. The 0.4mm height suits thin form-factor devices. Consider the clear lens option if maximum brightness transmission is required compared to diffused alternatives. Validate thermal management capabilities for the intended operating environment.
Part Context
This part belongs to Harvatek Corporation's discrete LED portfolio, which includes various SMD packages and color options. The 0605 size represents a balance between visibility and board space efficiency. It serves as a fundamental optoelectronic component for visual feedback in modern electronic assemblies.
Replacement Considerations
Publicly confirmed substitute part numbers are not available in the provided source data. Verify pinout compatibility and luminous intensity requirements when evaluating alternative components from other manufacturers.
