B3173BGR-20C0001Q3U1930

$0.17

Description：LED RGB 4SMD R/A
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a3596e61c8aa Category: LED Indication - Discrete Brand: Harvatek Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RGB 4SMD R/A
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Common Anode
Lens Color：-
Lens Transparency：-
Millicandela Rating：450mcd Red, 850mcd Green, 140mcd Blue
Lens Style：Round with Domed Top
Lens Size：2.20mm Dia
Voltage - Forward (Vf) (Typ)：2V Red, 2.6V Green, 2.6V Blue
Current - Test：-
Viewing Angle：145° Red, 128° Green, 136° Blue
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：622nm Red, 523nm Green, 465nm Blue
Wavelength - Peak：632nm Red, 520nm Green, 468nm Blue
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：4-SMD
Size / Dimension：3.20mm L x 1.50mm W
Height (Max)：1.10mm
Grade：-
Qualification：-

Download product information

B3173BGR-20C0001Q3U1930

Overview

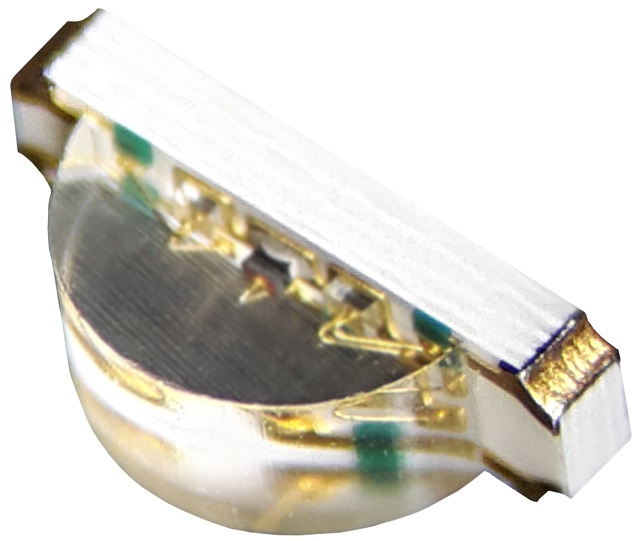

The B3173BGR-20C0001Q3U1930 is a surface-mount RGB LED indicator manufactured by Harvatek Corporation. It features a common anode configuration within a 4-SMD, no-lead package measuring 3.20mm in length and 1.50mm in width. The device emits red light at 622nm with 2V forward voltage, green light at 523nm with 2.6V forward voltage, and blue light at 465nm with 2.6V forward voltage. Luminous intensity ratings are 450mcd for red, 850mcd for green, and 140mcd for blue. The component utilizes a circular lens with a dome style and offers viewing angles of 145° for red, 128° for green, and 136° for blue.

Feature Summary

Integrated RGB color mixing capability within a single compact surface-mount package
Common anode electrical configuration simplifying circuit design
Circular dome lens structure providing wide viewing angles across all wavelengths
RoHS compliant construction suitable for environmentally regulated manufacturing processes

Applications

Status indication in consumer electronic devices
Multi-color signaling in industrial control panels
Visual feedback components in automotive interior lighting systems
Indicator modules in portable communication equipment

Procurement Notes

Verify the manufacturer part number B3173BGR-20C0001Q3U1930 against official Harvatek documentation to confirm specifications. Ensure compliance with RoHS standards and check Moisture Sensitivity Level (MSL) classification 3 requirements for proper storage and handling procedures prior to assembly.

Selection Notes

Select this component when a compact, multi-color visual indicator is required for space-constrained designs. The common anode structure reduces pin count compared to discrete LEDs. Consider the specific luminous intensity and wavelength requirements for visibility needs, noting the distinct intensity differences between the red, green, and blue channels.

Part Context

This component belongs to the family of surface-mount LED indicators produced by Harvatek Corporation. It is designed for applications requiring high-density mounting on printed circuit boards. The 4-SMD package type allows for automated placement during manufacturing, supporting efficient production workflows for modern electronics assembly.
