Product Detailed Parameters
- Description：LED RGB CLEAR 4SMD R/A
- Series：B31G3BGR-20
- Mfr：Harvatek Corporation
- Package：Tape & Reel (TR),Cut Tape (CT)
- Color：Red, Green, Blue (RGB)
- Configuration：Common Anode
- Lens Color：-
- Lens Transparency：Clear
- Millicandela Rating：950mcd Red, 1500mcd Green, 330mcd Blue
- Lens Style：Irregular
- Lens Size：-
- Voltage - Forward (Vf) (Typ)：2V Red, 2.6V Green, 2.6V Blue
- Current - Test：20mA Red, 20mA Green, 20mA Blue
- Viewing Angle：110°
- Mounting Type：Surface Mount, Right Angle
- Wavelength - Dominant：620nm Red, 526nm Green, 468nm Blue
- Wavelength - Peak：630nm Red, 518nm Green, 463nm Blue
- Features：-
- Package / Case：4-SMD, No Lead
- Supplier Device Package：4-SMD
- Size / Dimension：3.20mm L x 1.50mm W
- Height (Max)：1.10mm
- Grade：-
- Qualification：-
Download product information
Overview

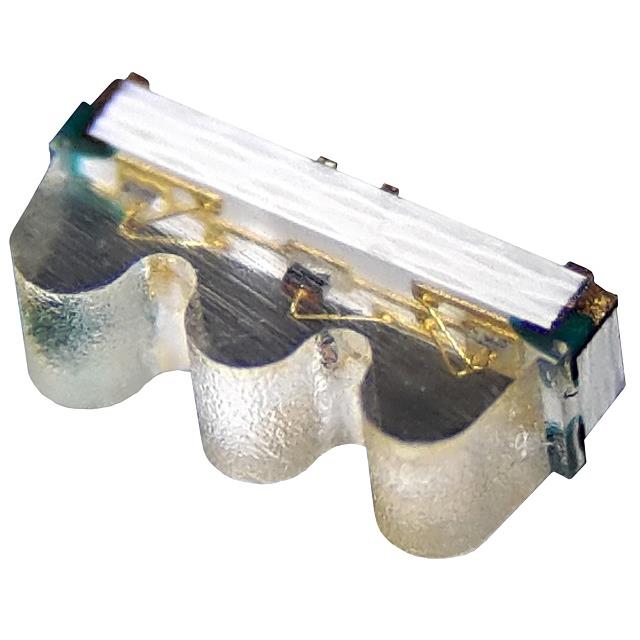

The B31G3BGR-20C0001Q3U1930 is a surface-mount RGB LED by Harvatek Corporation, featuring a right-angle 4-SMD package. It emits red (622nm), green (523nm), and blue (465nm) light with peak wavelengths of 632nm, 520nm, and 468nm respectively. Typical forward voltages are 2V for red and 2.6V for green/blue. Luminous intensity reaches 450mcd (red), 850mcd (green), and 140mcd (blue). The component has a viewing angle of 145° (red), 128° (green), and 136° (blue), with dimensions of 3.20mm x 1.50mm and a maximum height of 1.10mm.
Feature Summary
- Right-angle surface mount configuration for space-efficient PCB layout
- Integrated red, green, and blue chips for full-color mixing
- High luminous intensity output across all color channels
Applications
- Status indication in electronic devices
- Backlighting for displays and interfaces
- Decorative lighting modules
Procurement Notes
Verify the exact part number against official distributor catalogs to ensure compatibility with right-angle mounting requirements. Confirm moisture sensitivity level (MSL 3) handling procedures during storage and assembly. Check RoHS compliance status prior to integration into environmentally regulated products. Validate electrical parameters against specific application voltage constraints.
Selection Notes
Choose this component when right-angle orientation is required for RGB signaling or illumination. Compare luminous intensity values against visibility needs in ambient light conditions. Ensure PCB footprint matches the 3.20mm x 1.50mm SMD package dimensions. Consider thermal management capabilities given the compact form factor and power dissipation characteristics.
Part Context
This model belongs to Harvatek's Surface Mount CHIP LEDs series, designed for high-density electronics. It shares family traits like RoHS compliance but differs in package geometry and optical performance from other variants such as B3SK3RGB. The right-angle design distinguishes it from standard top-view RGB LEDs.
Replacement Considerations
Direct substitutes require matching right-angle 4-SMD packaging and similar RGB spectral outputs. Verify pinout compatibility and forward voltage tolerances. Cross-reference luminous intensity specifications to maintain visual consistency in existing designs.
