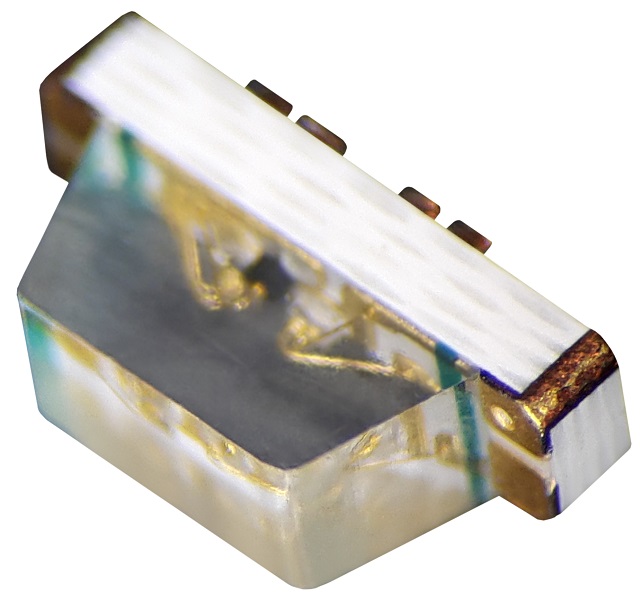

B3213GBR-05C0002Q3U1930

$0.39

Description：LED RGB CHIP SMD R/A
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:58058a21d948 Category: LED Indication - Discrete Brand: Harvatek Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LED RGB CHIP SMD R/A
Series：-
Mfr：Harvatek Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Color：Red, Green, Blue (RGB)
Configuration：Common Anode
Lens Color：-
Lens Transparency：-
Millicandela Rating：33.5mcd Red, 129mcd Green, 33.5mcd Blue
Lens Style：Rectangle with Flat Top
Lens Size：2.10mm x 0.80mm
Voltage - Forward (Vf) (Typ)：1.9V Red, 2.9V Green, 2.9V Blue
Current - Test：5mA Red, 5mA Green, 5mA Blue
Viewing Angle：130°
Mounting Type：Surface Mount, Right Angle
Wavelength - Dominant：620nm Red, 532nm Green, 470nm Blue
Wavelength - Peak：628nm Red, 522nm Green, 466nm Blue
Features：-
Package / Case：4-SMD, No Lead
Supplier Device Package：Chip LED
Size / Dimension：2.70mm L x 1.35mm W
Height (Max)：0.90mm
Grade：-
Qualification：-

Download product information

B3213GBR-05C0002Q3U1930

Overview

The B3213GBR-05C0002Q3U1930 is a compact addressable RGB LED component from Harvatek Corporation, belonging to the B3W13 series. It features a reverse-mount design for enhanced environmental protection and independent control of color and light intensity. The device supports I²C communication, allowing it to share a master MCU on the bus. Built-in breathing effects reduce MCU load, and current gain facilitates easy brightness control within its specified operational parameters.
