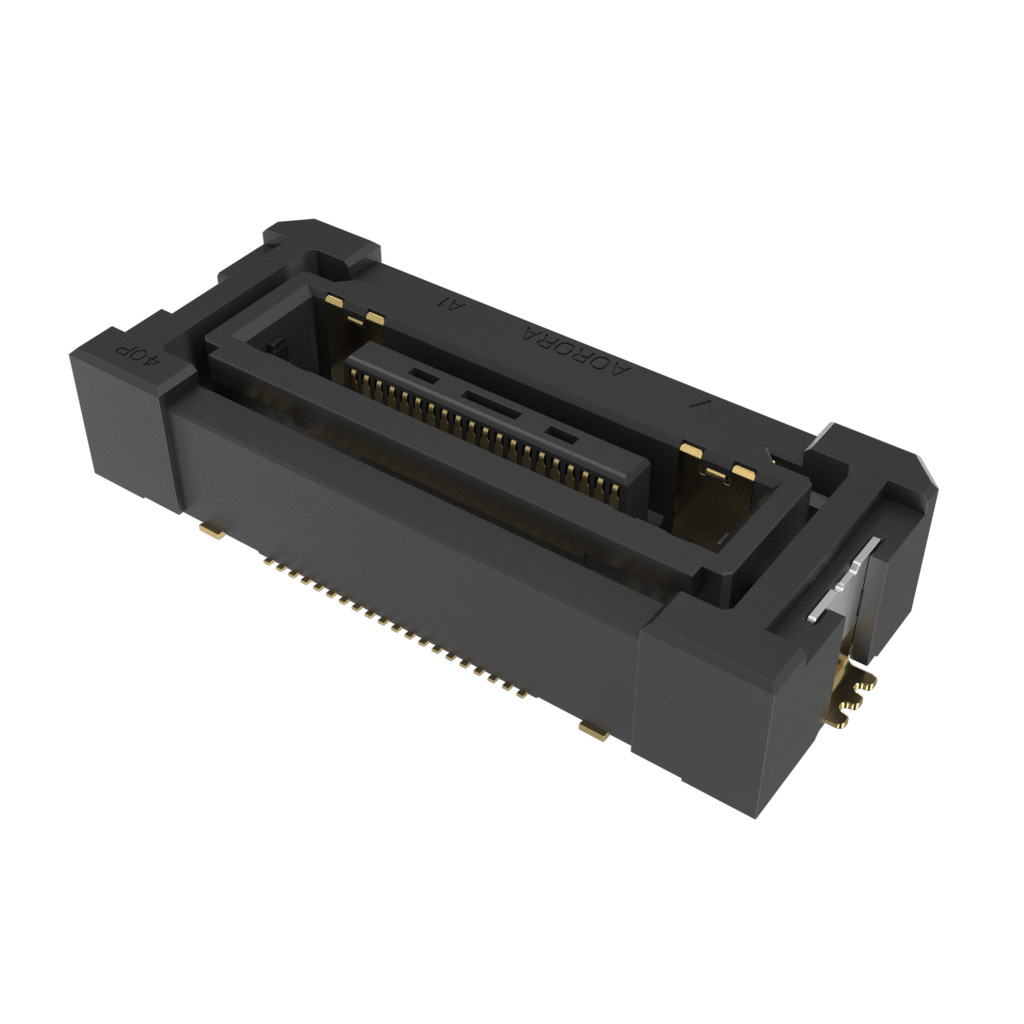

Arrays, Edge Type, Mezzanine (Board To Board) B3291B7L111240E100 product image

B3291B7L111240E100

$2.84

Description：B329-1B7L1-11240-E100-FLOATING S
Series：FloatCombo™
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:100e0ae62995 Category: Arrays, Edge Type, Mezzanine (Board to Board) Brand: Amphenol ICC (FCI)

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

B3291B7L111240E100 is listed in the Arrays, Edge Type, Mezzanine (Board To Board) range at ChipApex. The manufacturer field lists Amphenol ICC (FCI). Its product description is B329-1B7L1-11240-E100-FLOATING S. Review the specifications below when checking this part for your BOM.

Arrays, Edge Type, Mezzanine (Board To Board) specifications for B3291B7L111240E100

Description：B329-1B7L1-11240-E100-FLOATING S
Series：FloatCombo™
Mfr：Amphenol ICC (FCI)
Package：Tape & Reel (TR),Cut Tape (CT)
Connector Type：Receptacle, Center Strip Contacts
Number of Positions：40
Pitch：0.020" (0.50mm)
Number of Rows：2
Mounting Type：Surface Mount
Features：Board Guide, Solder Retention
Contact Finish：Gold
Contact Finish Thickness：3.94µin (0.100µm)
Mated Stacking Heights：8mm, 10mm, 13mm, 15mm, 20mm
Height Above Board：0.197" (5.00mm)

Arrays, Edge Type, Mezzanine (Board To Board) datasheet and documents for B3291B7L111240E100

B3291B7L111240E100
