Product Detailed Parameters
- Description：DIODE SCHOTTKY 60V 3A SMAF
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR),Cut Tape (CT)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：60 V
- Current - Average Rectified (Io)：3A
- Voltage - Forward (Vf) (Max) @ If：650 mV @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：200 µA @ 60 V
- Capacitance @ Vr, F：110pF @ 4V, 1MHz
- Mounting Type：Surface Mount

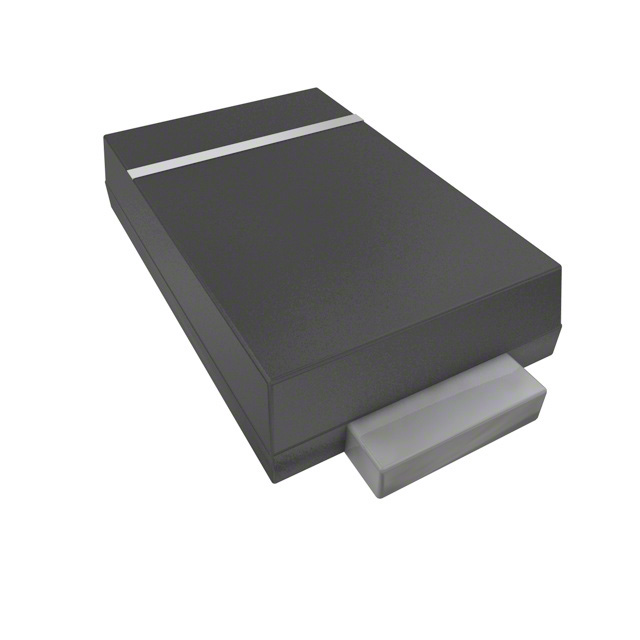

- Package / Case：DO-221AC, SMA Flat Leads
- Supplier Device Package：SMAF
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Download product information
Overview
The B360AF-13 is a 3.0A Schottky barrier rectifier from Diodes Incorporated, housed in an SMAF surface-mount package. It features a peak repetitive reverse voltage of 60V and a maximum forward voltage drop of 0.65V at +25°C. The device supports an average rectified output current of 3A and a non-repetitive peak forward surge current of 80A. Operating temperatures range from -55°C to +150°C.
Feature Summary
- Provides low forward voltage drop for improved efficiency and cooler operation
- Features reduced high-temperature reverse leakage to increase reliability against thermal runaway
- Utilizes guard ring die construction for transient protection
Applications
- Boost diode circuits
- Blocking diode applications
- Recirculating diode configurations
Procurement Notes
Verify the specific part number B360AF-13 against official Diodes Incorporated documentation to confirm electrical ratings and mechanical specifications. Ensure compatibility with SMAF footprint requirements and tape-and-reel packaging standards before integration into production workflows.
Selection Notes
Select this component for general rectification tasks requiring a 60V reverse voltage rating and 3A continuous current capacity. Consider its SMAF package dimensions and thermal resistance characteristics when designing PCB layouts for adequate heat dissipation and space constraints.
Part Context
This device belongs to the B350AF-B360AF series of 3.0A Schottky barrier rectifiers manufactured by Diodes Incorporated. The series offers various reverse voltage options within the same SMAF package form factor, allowing design flexibility while maintaining consistent mechanical and thermal performance across different voltage ratings.
Replacement Considerations
B350AF-13
FAQ
What is the maximum operating temperature for the B360AF-13?
The maximum operating and storage temperature range for the B360AF-13 is up to +150°C.
How does the B360AF-13 handle high-temperature operation?
It features reduced high-temperature reverse leakage current, which increases reliability against thermal runaway failure during high-temperature operation.
