Product Detailed Parameters
- Description：DIODE SCHOTTKY 60V 3A SMA
- Series：-
- Mfr：Diodes Incorporated
- Package：Tape & Reel (TR)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：60 V
- Current - Average Rectified (Io)：3A
- Voltage - Forward (Vf) (Max) @ If：580 mV @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：500 µA @ 60 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount

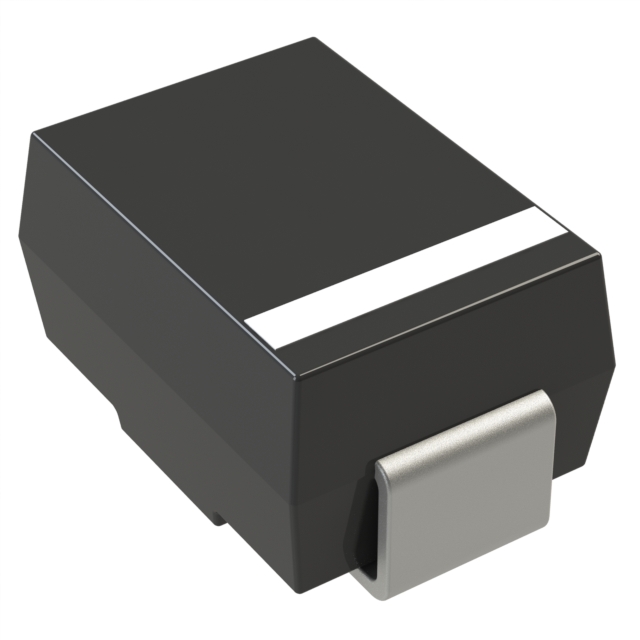

- Package / Case：DO-214AC, SMA
- Supplier Device Package：SMA
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：Automotive
- Qualification：AEC-Q101
Download product information
Overview
The B360AX-13 is a 3A Trench Schottky Barrier Rectifier in an SMA (DO-214AC) package. It features a maximum repetitive reverse voltage of 60V and an average rectified forward current of 3A. The device has a maximum forward voltage drop of 0.58V at 3A and 25°C, with a maximum leakage current of 0.5mA at 60V and 25°C. Non-repetitive peak forward surge current is rated at 70A for a single half-sine wave. Thermal resistance from junction to ambient is 65°C/W, and the operating junction temperature range spans from -55°C to +150°C.
Feature Summary
- Trench Schottky barrier technology provides low leakage current and soft, fast switching capability.
- Capable of operating at junction temperatures up to +150°C.
- Lead-free finish with RoHS compliance and halogen/antimony-free green compound.
Applications
- Low-voltage, high-frequency inverters
- DC-DC converters
- Free wheeling diodes
- Reverse polarity protections
- Blocking diodes
Procurement Notes
Verify the specific ordering suffix '-13' corresponds to the Tape & Reel packing quantity of 5,000 units as documented. Confirm that the SMA package dimensions align with the provided outline specifications. Ensure the application environment does not exceed the specified thermal resistance limits or require derating for capacitive loads.
Selection Notes
Select this component when a 60V rating and 3A continuous current are required in a surface-mount SMA footprint. Consider the lower forward voltage compared to standard silicon rectifiers for efficiency gains. Verify suitability for high-frequency applications due to the fast switching characteristics inherent to the trench Schottky design.
Part Context
This part belongs to the B360AX series of surface mount Schottky barrier rectifiers manufactured by Diodes Incorporated. It utilizes trench technology to achieve improved electrical performance over traditional planar designs. The series is designed for general-purpose rectification in compact electronic assemblies requiring high reliability and low power loss.
Replacement Considerations
Direct substitutes must match the 60V VRRM, 3A IO, and SMA package. Check datasheets for equivalent VF and IR specifications. Verify if alternative parts support the same +150°C junction temperature rating and RoHS compliance status before integration.
FAQ
What is the non-repetitive peak forward surge current rating?
The B360AX-13 supports a non-repetitive peak forward surge current of 70A for a 1ms single half-sine wave superimposed on rated load.
How does the forward voltage drop vary with temperature?
The maximum forward voltage drop increases from 0.58V at 25°C to 0.50V at 125°C under a 3.0A forward current condition, as specified in the electrical characteristics table.
